[PN: 20-0198-02] Radium Fuel Rail, Toyota 2GR-FE

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.
Fuel Pressure Gauge Adapters can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

Manufactured with 0.69" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. CNC machined aluminum mounting tabs are included for a factory fit and to maintain the original fuel rail height so both OEM or aftermarket equivalent injectors can work.

FEATURES

-Anodized surface finish for wear and corrosion resistance
-Lighweight aluminum construction
-Inner bore diameter: 0.7 inch
-Compatible with OEM and aftermarket equivalent fuel injectors
-Can be converted to a pressure regulated return system
-No special tools required for installation
-Fits under the factory intake manifold and engine cover
-Compatible with naturally aspirated and OEM supercharged vehicles

FUEL INJECTOR COMPATIBILITY

SELECTION

20-0198-02 Fuel Rails, Toyota 2GR-FE

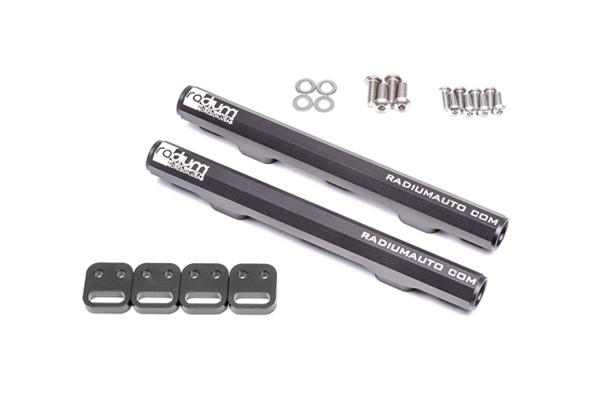

This includes both fuel rails and all necessary mounting hardware, as shown below. Fittings and hose will need to be individually purchased.


20-0898-PK Fuel Rail Plumbing, Toyota 2GR-FE
This kit includes all necessary adapters to plumb the 20-0198-02 fuel rails to the OEM fuel system. It also includes a Radium Engineering FPD-R that replaces the OEM fuel pulse damper.

The kit makes the fuel rails truely bolt-on with no other parts required.
