[PN: 20-0214] Radium FCST Lift Pump Mounts, All Depths

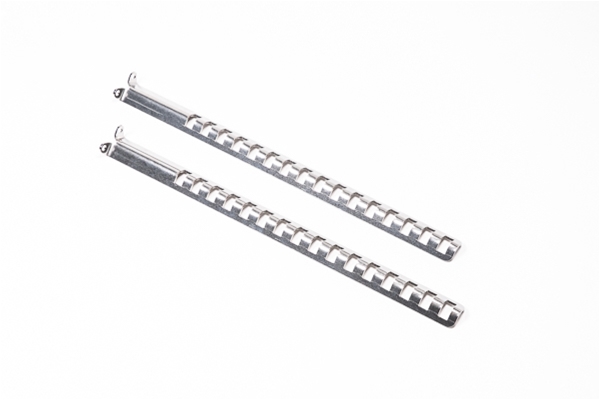

These stainless steel brackets are designed to properly mount the Fuel Cell Surge Tank (FCST) lift pump to the bottom of the fuel cell. The standard FCST lift pump brackets are designed for fuel cells that are no deeper than 9" (229mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. These kits include 2 laser cut and formed polished stainless steel brackets.

20-0214 FCST LIFT PUMP MOUNTS, ALL DEPTHS
These lift pump mounts permit an additional 8" (203mm) over the standard mounts provided with the FCST.

20-1014 FCST LIFT PUMP MOUNTS, MID DEPTH
These lift pump mounts were designed specifically for 14 gallon and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm).

However, they permit the FCST lift pump to be mounted into a fuel cell with an internal depth up to 12.7" (323mm).
They will properly place the lift pump at a fuel cell depth up to 17" (432mm). If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc.

NOTE: Longer hose and/or wiring may be necessary. Contact tech support for more details.
