[PN: 20-1086] Radium Fuel Filter Mount, 2016+ Honda Civic

Installation Instructions

VEHICLE COMPATIBILITY

• 2016+ Honda Civic (all)

OVERVIEW

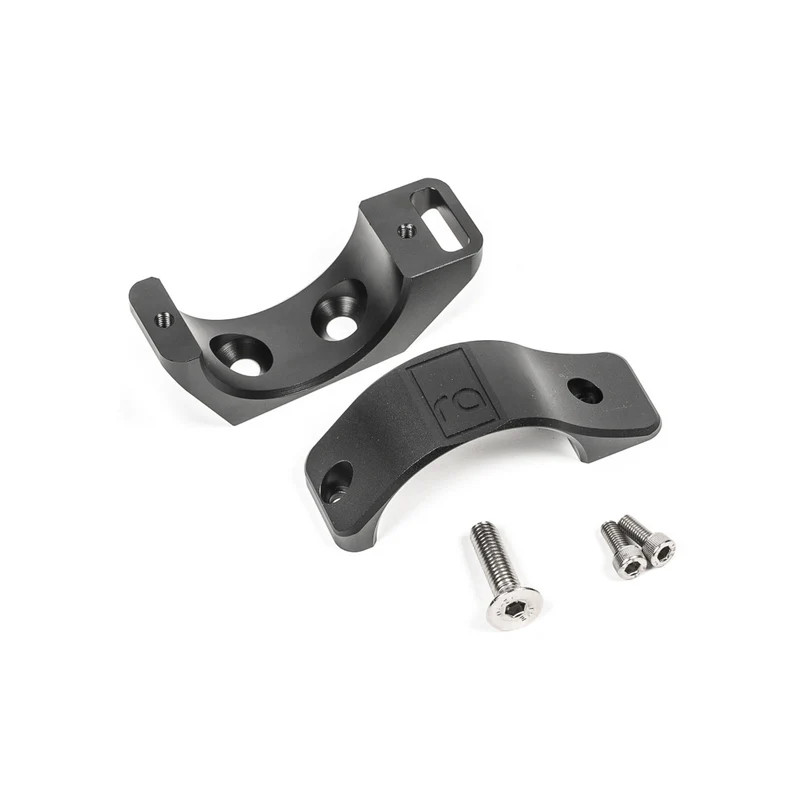

Hardware for installing a Radium Engineering fuel filter in a Honda Civic. One half of the billet aluminum clamp secures to the LH fuel tank mounting tab. The OEM screw is replaced with a stainless steel flat head screw. The opposing half of the billet aluminum clamp secures the fuel filter using stainless steel screws.

Designed to also fit the FL5 Civic Type-R by simply using the second countersink hole. This permits the required space on this particular fuel tank.

FEATURES

• Mounts to OEM Threaded Hole
• No Permanent Modifications Required
• Billet Anodized Aluminum Clamps
• Clamp Diameter: 60mm (2.36")
• Stainless Steel Hardware

NOTES

• The fuel filter is not included, but can be selected above
• For more information on Radium Engineering fuel filters, please see this product page HERE
• Aftermarket fuel lines and fittings will need to be configured separately
• This clamp will also work with and external Bosch 0 580 254 044 fuel pump
