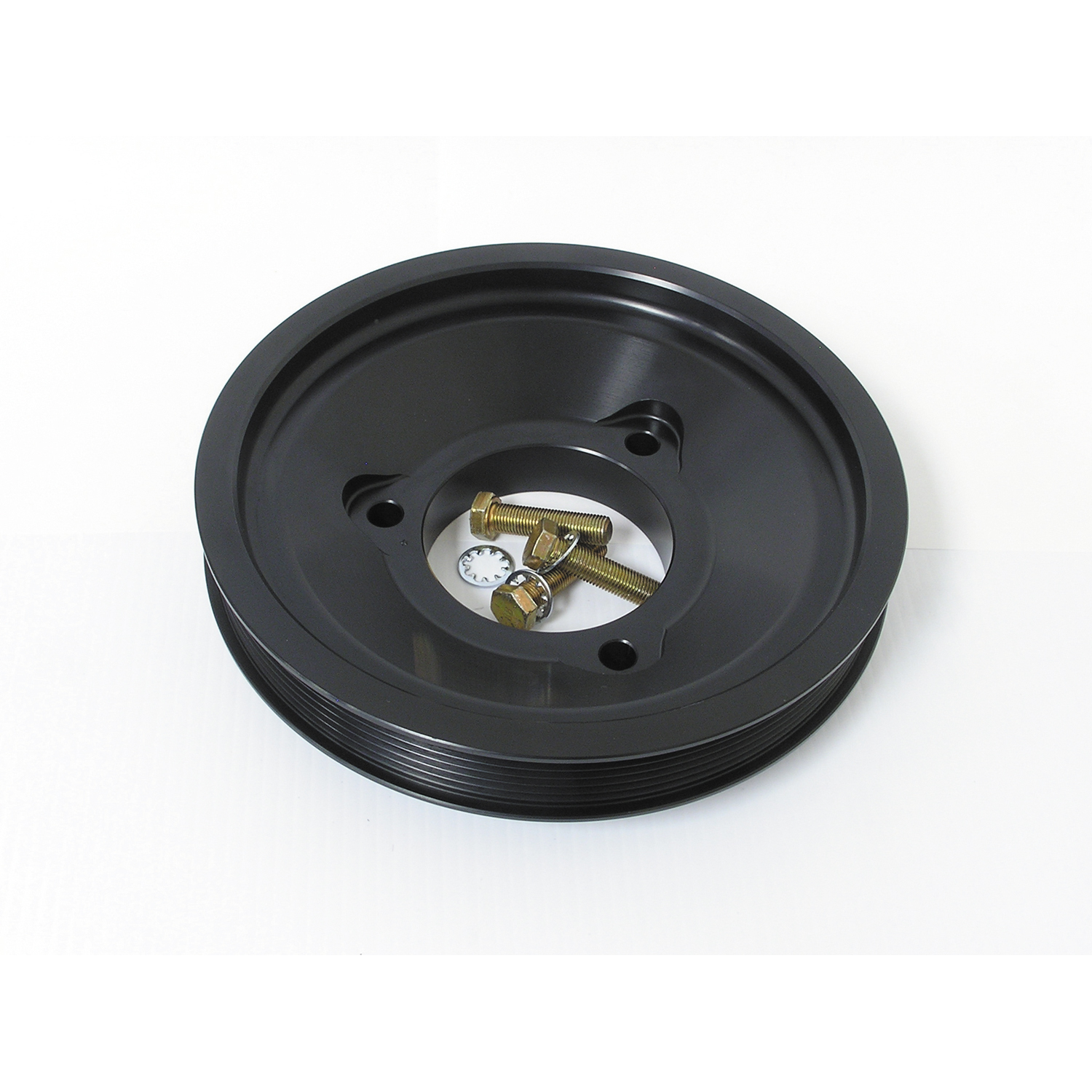

![[PN: 717675] Fluidampr Ford 6.0L Powerstroke 8in Duel Belt 5 and 7 Rib Pulley For Alternator](https://cdn11.bigcommerce.com/s-gzvxujwotg/images/stencil/500x659/products/5452/15262/717675__61603.1696975553.jpg?c=2 "[PN: 717675] Fluidampr Ford 6.0L Powerstroke 8in Duel Belt 5 and 7 Rib Pulley For Alternator")
![[PN: 717675] Fluidampr Ford 6.0L Powerstroke 8in Duel Belt 5 and 7 Rib Pulley For Alternator](https://cdn11.bigcommerce.com/s-gzvxujwotg/images/stencil/1280x1280/products/5452/15262/717675__61603.1696975553.jpg?c=2 "[PN: 717675] Fluidampr Ford 6.0L Powerstroke 8in Duel Belt 5 and 7 Rib Pulley For Alternator")
Pulley and Hardware

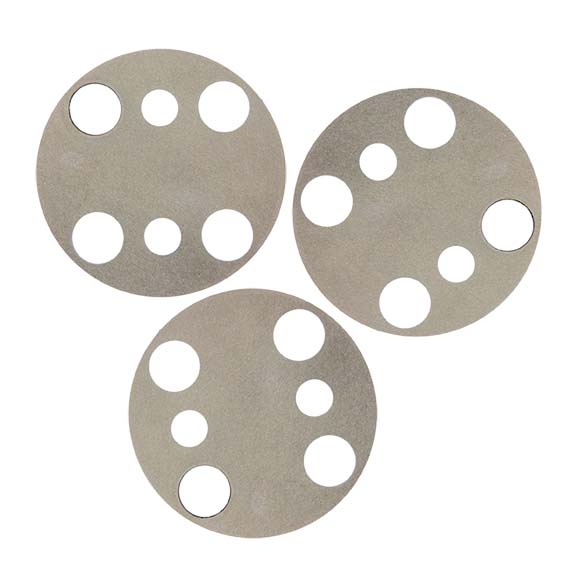

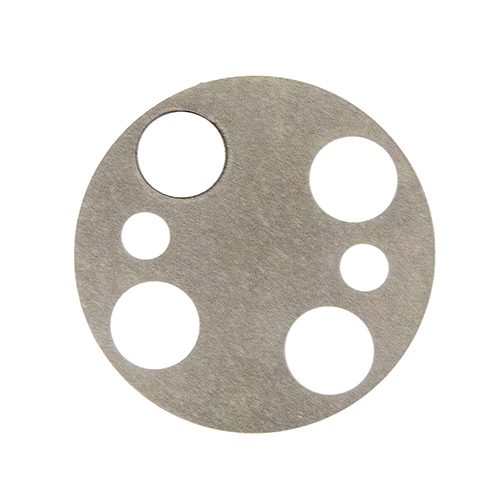

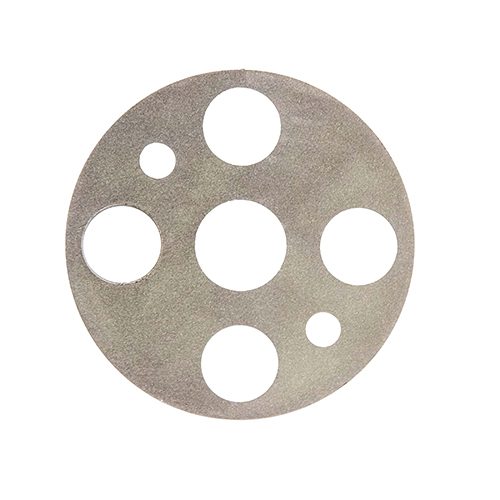

Fluidampr Friction Washers
- P/N 870201-FW01
- P/N 800211-FW03
- P/N 800221-FW01
Fluidampr recommends replacing the diamond impregnated friction washer in the the Fluidampr High Strength Bolt Kits (p/n 300014, 300015, 300016) each time the damper is removed. This practice ensures a secure mating surface between the damper and the crankshaft. Available in single or three pack.
- p/n 870201-FW01. 6.0L Power Stroke Friction Washer. 1pc.
- p/n 870201-FW03. 6.0L Power Stroke Friction Washer. 3pc.
- p/n 800211-FW01. 6.4L Power Stroke Friction Washer. 1pc.
- p/n 800211-FW03. 6.4L Power Stroke Friction Washer. 3pc.
- p/n 800221-FW01. 6.7L Power Stroke Friction Washer. 1pc.
- p/n 800221-FW03. 6.7L Power Stroke Friction Washer. 3pc.
Diesel Accessories
Champion diesel engine builders continue to push new records using a Fluidampr Performance Diesel damper. To exceed their requests to provide the industry’s leading damper, Fluidampr proudly offers new hardware kits and installation recommendations to further achieve long term performance and durability. These kits were developed and tested in conjunction with several leading competitors of the Ultimate Callout Challenge.
| Part No. | Description | Application | Size | WT. (Lbs.) |
|---|---|---|---|---|
| 300002 | Dodge Cummins Drill Pin Kit | Drill fixture, drill bit, reamer, 3 dowel pins | NA | 1.0 |
| 300003 | Dodge Cummins Sensor Relocation Kit | Use on 12V Trucks 1992-1998 | NA | 2.0 |
| 300007 | Cummins High Strength Bolt Kit | 2003+ Dodge/Ram 5.9L / 6.7L Cummins up to 700hp / 1,250lb-ft torque | NA | 1.0 |
| 300008 | Cummins Full Power Kit | 1989+ Dodge/Ram 5.9L / 6.7L Cummins above 700hp / 1,250 lb-ft torque | NA | 2.0 |
| 300009 | Cummins 5.9L 12v & 24v High Strength Bolt Kit | 1989-2002 Dodge/ Ram 5.9L 12v & 24v Cummins up to 700hp / 1,250 lb-ft torque | NA | 1.0 |
| 300010 | Duramax 6.6L High Strength Bolt Kit | 2001+ GM/Chevy 6.6L Duramax | NA | 1.0 |
| 300014 | Power Stroke 6.0L High Strength Bolt Kit | 2003-2007 Ford 6.0L Power Stroke | NA | 1.0 |
| 300015 | Power Stroke 6.4L High Strength Bolt Kit | 2008-2010 Ford 6.4L Power Stroke | NA | 1.0 |
| 300016 | Power Stroke 6.7L High Strength Bolt Kit | 2011-Present Ford 6.7L Power Stroke | NA | 1.0 |
| 960341-FW01 | Cummins Friction Washer - 1pc | 1989+ Dodge/Ram 5.9L / 6.7L Cummins | NA | 0.25 |
| 960341-FW03 | Cummins Friction Washer - 3pc | 1989+ Dodge/Ram 5.9L / 6.7L Cummins | NA | 0.25 |
| 760131-FW01 | Duramax Friction Washer - 1pc | 2001+ GM/Chevy 6.6L Duramax | NA | 0.25 |
| 760131-FW03 | Duramax Friction Washer - 3pc | 2001+ GM/Chevy 6.6L Duramax | NA | 0.25 |
| 870201-FW01 | Power Stroke Friction Washer - 1pc | 2003-2007 Ford 6.0L Power Stroke | NA | .25 |
| 870201-FW03 | Power Stroke Friction Washer - 3pc | 2003-2007 Ford 6.0L Power Stroke | NA | .25 |
| 800211-FW01 | Power Stroke Friction Washer - 1pc | 2008-2010 Ford 6.4L Power Stroke | NA | .25 |
| 800211-FW03 | Power Stroke Friction Washer - 3pc | 2008-2010 Ford 6.4L Power Stroke | NA | .25 |
| 800221-FW01 | Power Stroke Friction Washer - 1pc | 2011-Present Ford 6.7L Power Stroke | NA | .25 |
| 800221-FW03 | Power Stroke Friction Washer - 3pc | 2011-Present Ford 6.7L Power Stroke | NA | .25 |
| 717675 | Ford PowerStroke 6.0L Dual Alternator Pulley | Pulley and Hardware | 8" | 9.0 |
