Name: [PN: 830141] Fluidampr 17-19 GM 6.6L Duramax Steel Externally Balanced Damper
SKU: 830141
Price: 563.55 USD
Availability: InStock

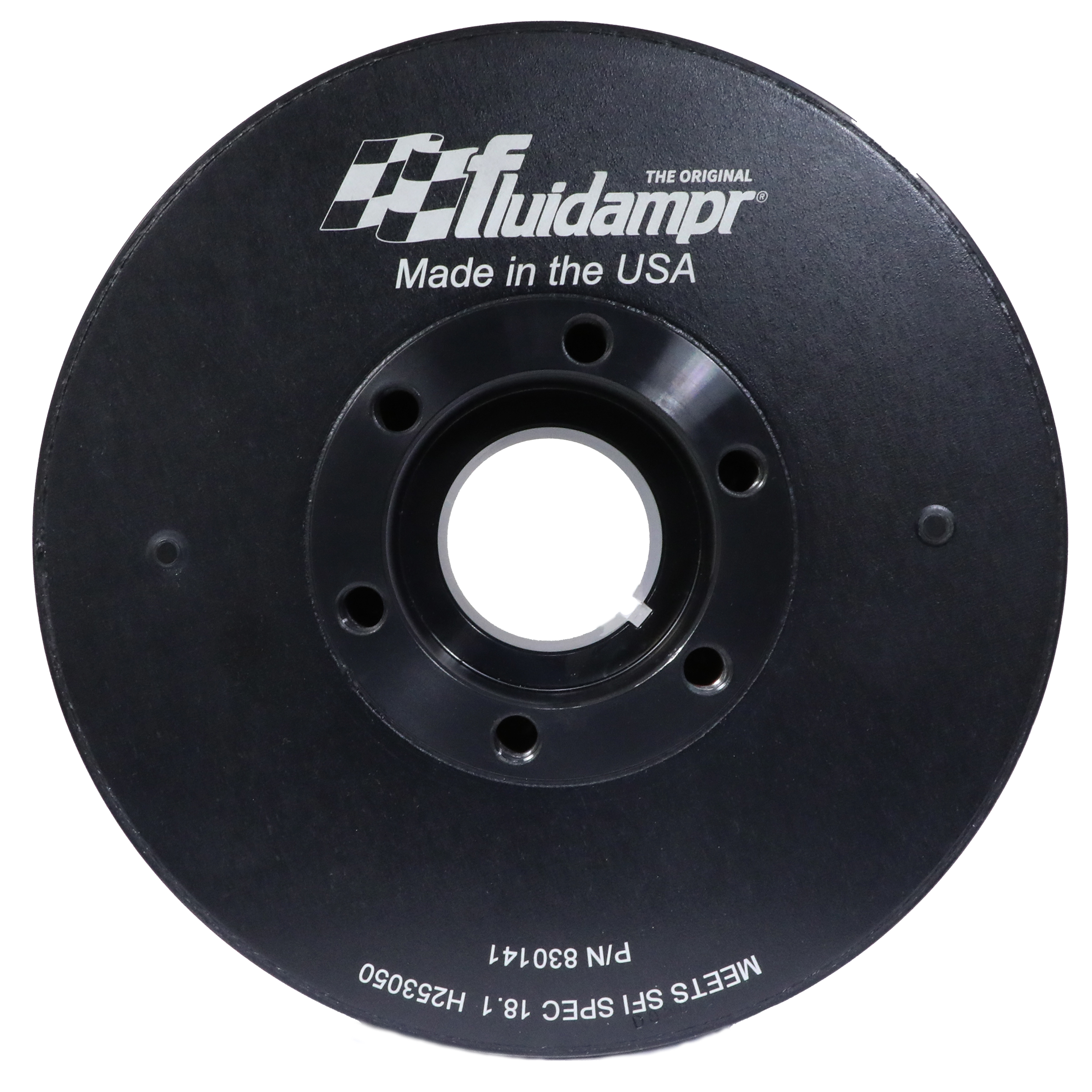

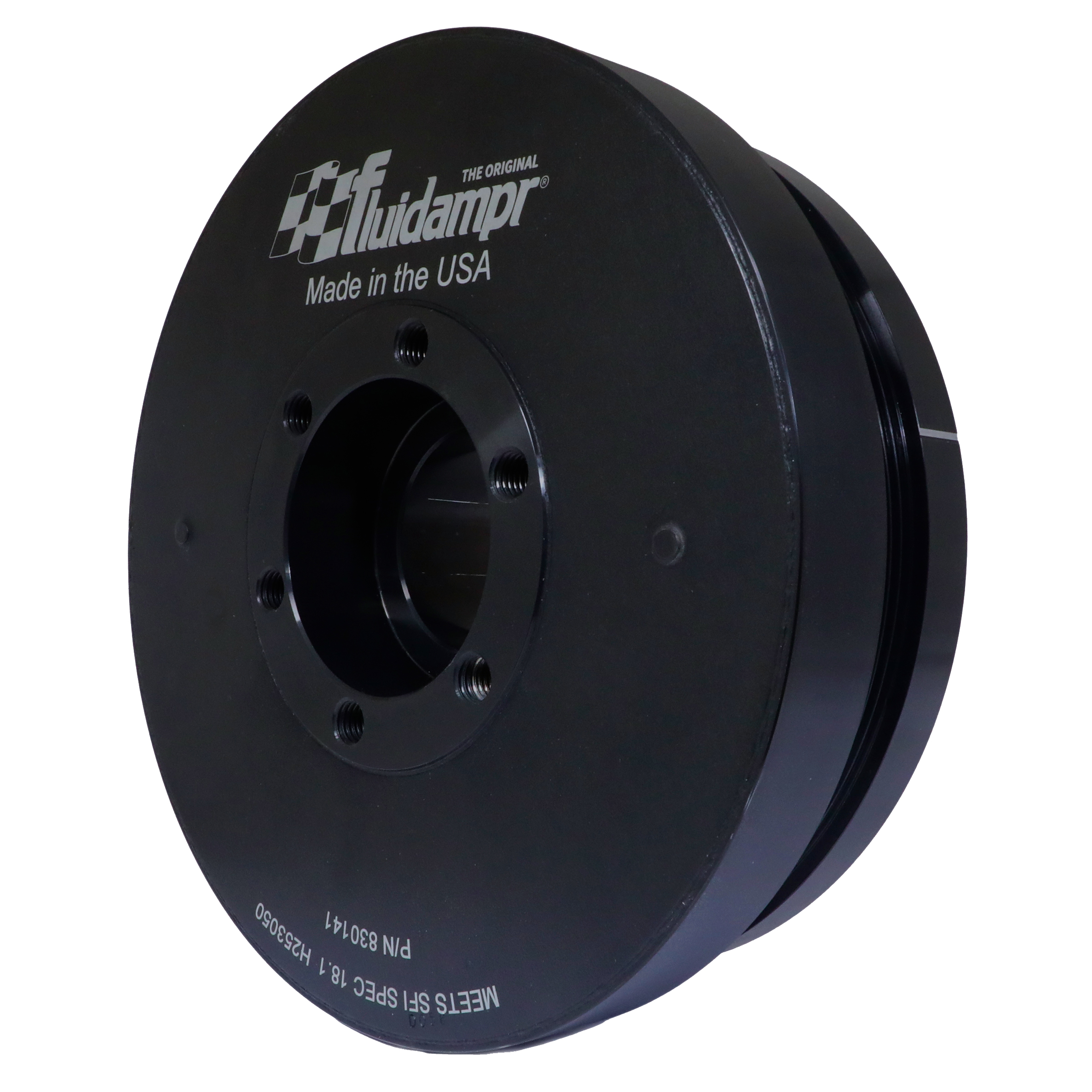

[PN: 830141] Fluidampr 17-19 GM 6.6L Duramax Steel Externally Balanced Damper

MSRP: $663.00

$563.55

( saved $99.45 )

Write a Review

Product Description

Installation Instructions

6.6L GM Duramax 2017-2019, L5P

Protect your truck with the technology high power diesel OEMs use. A Fluidampr performance diesel damper provides premium, broad range control of destructive crankshaft torsional vibration for optimum performance and durability. Install Fluidampr to reduce wear on critical internal engine components when engine modifications are done to gain horsepower or when rotating assembly parts are upgraded. Features high quality, long lasting viscous silicone with precision CNC machined and computer balanced high-grade steel components. No tuning or maintenance required.

PART #	830141
Fitment	2017-2019 GM/Chevy. 6.6L Duramax L5P.
Bore Diameter	1.93"
Degree Marking Range	TDC
Degree Markings	Engraved
Engine Balance	External
Finish	Black Zinc
Keyway	Single; (5mm)
Length	2.66"
Material	Steel
Mounting Hardware Included	Yes, washer. Recommend Fluidampr High Strength Bolt Kit p/n 300010
Outside Diameter	8-3/8"
Safety Rating	SFI 18.1
Weight / Rotating Weight	27.6 lbs / 18.2 lbs

Diesel Accessories

Champion diesel engine builders continue to push new records using a Fluidampr Performance Diesel damper. To exceed their requests to provide the industry’s leading damper, Fluidampr proudly offers new hardware kits and installation recommendations to further achieve long term performance and durability. These kits were developed and tested in conjunction with several leading competitors of the Ultimate Callout Challenge.

Part No.	Description	Application	Size	WT. (Lbs.)
300002	Dodge Cummins Drill Pin Kit	Drill fixture, drill bit, reamer, 3 dowel pins	NA	1.0
300003	Dodge Cummins Sensor Relocation Kit	Use on 12V Trucks 1992-1998	NA	2.0
300007	Cummins High Strength Bolt Kit	2003+ Dodge/Ram 5.9L / 6.7L Cummins up to 700hp / 1,250lb-ft torque	NA	1.0
300008	Cummins Full Power Kit	1989+ Dodge/Ram 5.9L / 6.7L Cummins above 700hp / 1,250 lb-ft torque	NA	2.0
300009	Cummins 5.9L 12v & 24v High Strength Bolt Kit	1989-2002 Dodge/ Ram 5.9L 12v & 24v Cummins up to 700hp / 1,250 lb-ft torque	NA	1.0
300010	Duramax 6.6L High Strength Bolt Kit	2001+ GM/Chevy 6.6L Duramax	NA	1.0
300014	Power Stroke 6.0L High Strength Bolt Kit	2003-2007 Ford 6.0L Power Stroke	NA	1.0
300015	Power Stroke 6.4L High Strength Bolt Kit	2008-2010 Ford 6.4L Power Stroke	NA	1.0
300016	Power Stroke 6.7L High Strength Bolt Kit	2011-Present Ford 6.7L Power Stroke	NA	1.0
960341-FW01	Cummins Friction Washer - 1pc	1989+ Dodge/Ram 5.9L / 6.7L Cummins	NA	0.25
960341-FW03	Cummins Friction Washer - 3pc	1989+ Dodge/Ram 5.9L / 6.7L Cummins	NA	0.25
760131-FW01	Duramax Friction Washer - 1pc	2001+ GM/Chevy 6.6L Duramax	NA	0.25
760131-FW03	Duramax Friction Washer - 3pc	2001+ GM/Chevy 6.6L Duramax	NA	0.25
870201-FW01	Power Stroke Friction Washer - 1pc	2003-2007 Ford 6.0L Power Stroke	NA	.25
870201-FW03	Power Stroke Friction Washer - 3pc	2003-2007 Ford 6.0L Power Stroke	NA	.25
800211-FW01	Power Stroke Friction Washer - 1pc	2008-2010 Ford 6.4L Power Stroke	NA	.25
800211-FW03	Power Stroke Friction Washer - 3pc	2008-2010 Ford 6.4L Power Stroke	NA	.25
800221-FW01	Power Stroke Friction Washer - 1pc	2011-Present Ford 6.7L Power Stroke	NA	.25
800221-FW03	Power Stroke Friction Washer - 3pc	2011-Present Ford 6.7L Power Stroke	NA	.25
717675	Ford PowerStroke 6.0L Dual Alternator Pulley	Pulley and Hardware	8"	9.0
