Name: [PN: TS-0208-1112] Turbosmart BOV Pro Port Black
SKU: TS-0208-1112
Price: 399.95 USD
Availability: InStock

[PN: TS-0208-1112] Turbosmart BOV Pro Port Black

MSRP: $444.39

$399.95

( saved $44.44 )

Write a Review

Product Description

Installation guide

Data sheet

ProPort by Turbosmart is an all-new 54mm (2.13in) Blow-off Valve with a tiny footprint and massive flow. The ProPort flows 420 cfm, enough for 3500 HP and is in a league of its own, standing 30mm (1.2in) lower than PowerPort while flowing over 25% more than the Market leading 50mm RacePort. Features include our unique locking collar design, new unique vent profile, sensor cap option and spring options for all turbocharged and supercharged applications.

The ProPort resulted from over 25 years of Blow Off Valve manufacturing experience and 12 months of internal development. The design is CFD-driven and real-world validated for the maximum possible flow based on the demands of the Tuning and motorsport Market. The Milspec Diaphragm operated valve is highly responsive while using our Boost-Balance system, which means the more boost you feed it, the better it seals!

Available with an onboard position sensor as an option, we utilise a non-contact hall effect sensor for the position of the valve, which means no through-holes in the cap, ensuring no chance of leaks. The data this can provide for professional and amateur teams alike is invaluable when every pass and every minute on track counts!

The Quick Release V-Band system is of the quality you expect from Turbosmart. Our GenV cap profile is easily distinguishable and includes 2 x 1/8NPT reference ports on a cap that can be rotated to simplify reference hose runs in complex engine bays.

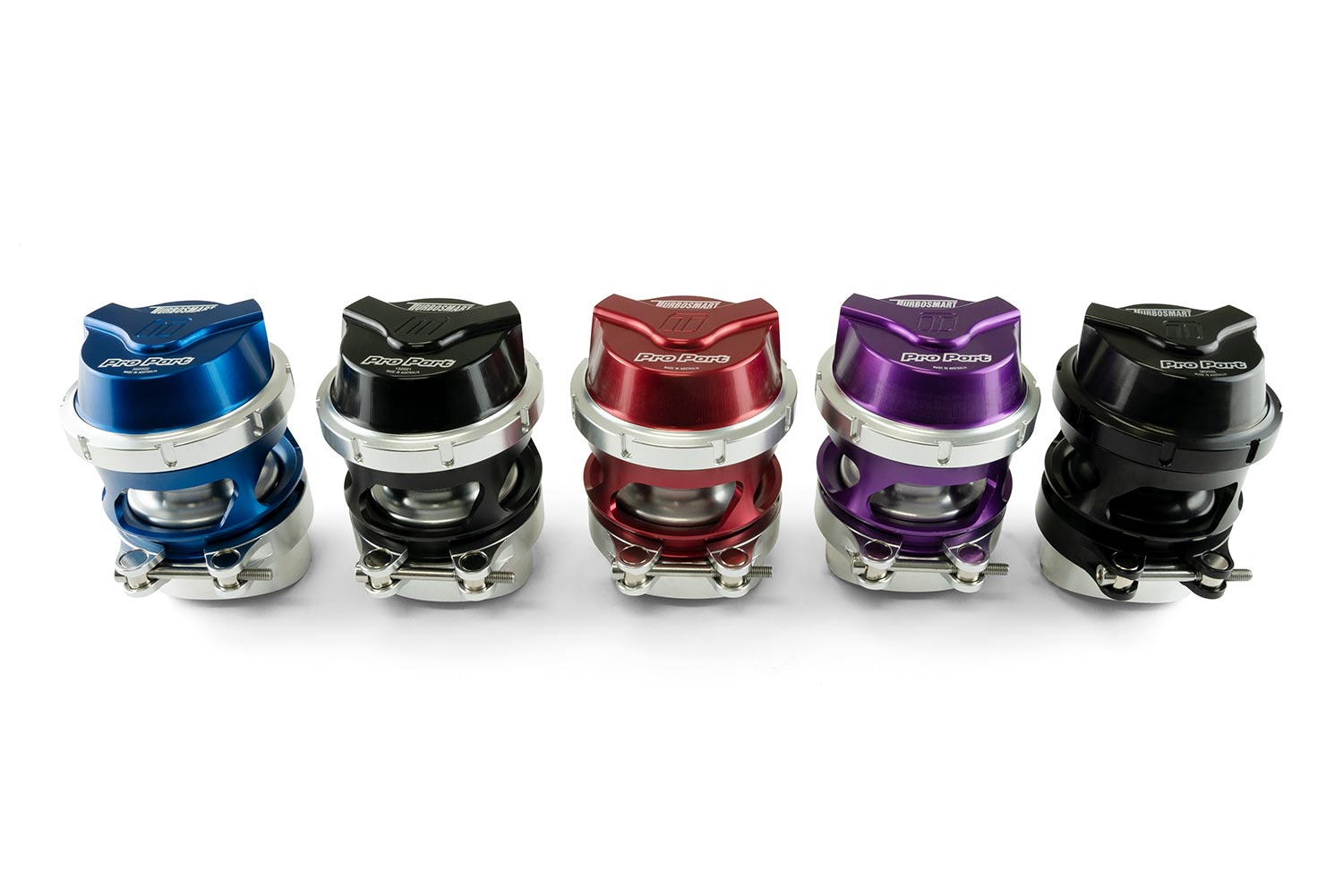

Available in:
Blue TS-0208-1111
Black TS-0208-1112
Red TS-0208-1113
Purple TS-0208-1114
Sleeper TS-0208-1115
Black With Sensor Cap TS-0208-1212
Black Suit Supercharger TS-0208-1132

Features:
2 x 1/8″ NPT Reference Ports
Mil-Spec Proprietary Diaphragm
Anodised 6000 series billet Aluminium Body and Valve
Quick Change V-Band Fitment
Unique Locking Collar Design
Optional Valve Position Sensor

SUPPLIED WITH

GenV ProPort BOV unit
1 x 1/8″ NPT Nipple
1 x 1/8″ Blanking Plug
V-Band Assembly
Profiled Alloy Weld-On Fitting
Blue Spring is rated -18 to -14 InHg (pre-installed).
Turbosmart Decal

SPARES
TS-0205-3011 Uniglide Lubricant
TS-0207-3009 GenV ProPort Inlet Flange O-Ring
TS-0207-3004 GenV ProPort V-Band Clamp
TS-0207-3001 GenV ProPort Weld Flange – Alloy
TS-0207-2001 GenV ProPort Weld Flange – Stainless Steel
TS-0208-9005 GenV ProPort Diaphragm Assembly
TS-0550-3014 Locking Collar C Spanner

SPRINGS
TS-0208-9011 GenV ProPort Spring Kit – All
TS-0208-9006 GenV ProPort Spring (4 InHG) Pink
TS-0208-9007 GenV ProPort Spring (7 InHG) Orange
TS-0208-9008 GenV ProPort Spring (9 InHG) Purple
TS-0208-9009 GenV ProPort Spring (15 InHG) Green
TS-0208-9010 GenV ProPort Spring (18 InHG) Blue

ACCESSORIES
TS-0208-9002 GenV ProPort Sensor Cap Upgrade – Black
TS-0550-3008 1/8NPT to 6mm Hode End Adaptor
TS-0505-2008 1/8NPT to -3AN Male to Male Adaptor
TS-0505-2007 1/8NPT to -4AN Male to Male Adaptor

How much boost can this take?

How much do you have? The technical limit is maintained at over 220psi, but it can even do more than this in short bursts. You’re probably asking at what point it will leak, and the answer is it won’t. The Turbosmart Boost-Balance System means the more boost you make, the better it will seal. We do this to maximise response and boost holding characteristics as we will always have more force pushing the valve closed than you will have to boost trying to make it open.

So, what is the limit of this valve?

The more boost you have, the better it seals. The valve can flow air; that limit is around 3500HP of air. It will never leak, even with more than that power level. However, you may experience an audible compressor surge when bypassing more than 3500HP. And if that is you, great news – We have the PowerPort for over 3500HP Applications!

What Fittings does it use?

The ProPort is based on the GenV architecture and features our V-styled cap with 2 x 1/8NPT reference ports. The cap can be rotated and clocked to enable the most suitable routing of reference hoses. We include a hose end barb in the kit. However, you’re also welcome to use high-quality lines and fittings.

Can I upgrade to a Sensor Cap?

Yes. If you already have a ProPort, an upgraded sensor cap is available as a part number, which comes with a new cap and sensor that can be swapped out and fitted to your existing ProPort later. Note that we only produce the Sensor Caps in black.

I have a Supercharger – Is this suitable?

Yes. Spring options are available in the website’s spares and accessories area to set this up for Supercharger Applications. It was designed to do both!
