Name: [PN: TS-0208-1212] Turbosmart BOV Pro Port Sensor Cap Black
SKU: TS-0208-1212
Price: 524.95 USD
Availability: InStock

[PN: TS-0208-1212] Turbosmart BOV Pro Port Sensor Cap Black

MSRP: $583.28

$524.95

( saved $58.33 )

Write a Review

Product Description

Installation guide

Data sheet

ProPort by Turbosmart is an all-new 54mm (2.13in) Blow-off Valve with a tiny footprint and massive flow. The ProPort flows 420 cfm, enough for 3500 HP, and is in a league of its own, standing 30mm (1.2in) lower than PowerPort while flowing over 25% more than the Market leading 50mm Raceport. Features include our unique locking collar design, new unique vent profile, sensor cap option and spring options for all turbocharged and supercharged applications.

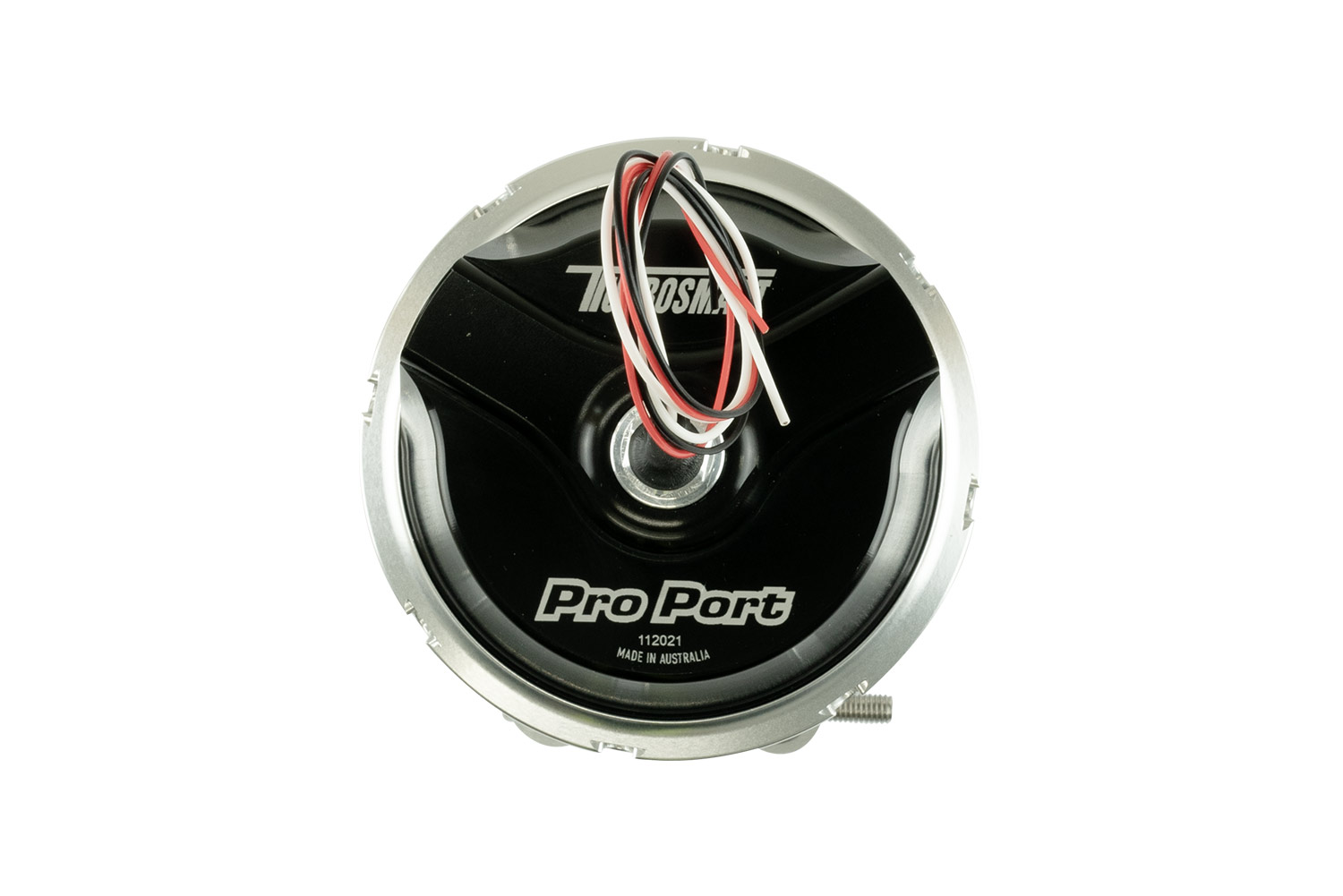

This ProPort is factory-fitted with a Hall Effect Position Sensor so that you can measure and log the valve position. Turbosmart’s unique Position Sensor technology means a blind hole in the cap that can never leak!

The ProPort resulted from over 25 years of Blow Off Valve manufacturing experience and 12 months of internal development. The design is CFD driven and real-world validated for maximum possible flow based on the demands of the Tuning and Motorsport Market. The Milspec Diaphragm operated valve is highly responsive while using our Boost-Balance system, which means the more boost you feed it, the better it seals!

Available with an onboard position sensor as an option, we utilise a non-contact hall effect sensor for the position of the valve, which means no through-holes in the cap, ensuring no chance of leaks. The data this can provide for professional and amateur teams alike is invaluable when every pass and every minute on track counts!

The Quick Release V-Band system is of the quality you have come to expect from Turbosmart, as our GenV cap profile is easily distinguishable and includes 2 x 1/8NPT reference ports on a cap that can be rotated for simplifying reference hose runs in complex engine bays.

Available in:
Blue TS-0208-1111
Black TS-0208-1112
Red TS-0208-1113
Purple TS-0208-1114
Sleeper TS-0208-1115
Black With Sensor Cap TS-0208-1212
Black Suit Supercharger TS-0208-1132

Features:
2 x 1/8″ NPT Reference Ports
Mil-Spec Proprietary Diaphragm
Anodised 6000 series billet Aluminium Body and Valve
Quick Change V-Band Fitment
Unique Locking Collar Design
Optional Valve Position Sensor

SUPPLIED WITH

GenV ProPort BOV unit

1 x 1/8″ NPT Nipple

1 x 1/8″ Blanking Plug

V-band Assembly

Profiled Alloy Weld-On Fitting

Blue Spring Rated -18 to -14 InHg (pre-installed).

Turbosmart Decal

SPARES
TS-0205-3011 Uniglide Lubricant
TS-0207-3009 GenV ProPort Inlet Flange O-Ring
TS-0207-3004 GenV ProPort V-Band Clamp
TS-0207-3001 GenV ProPort Weld Flange – Alloy
TS-0207-2001 GenV ProPort Weld Flange – Stainless Steel
TS-0208-9005 GenV ProPort Diaphragm Assembly
TS-0550-3014 Locking Collar C Spanner

SPRINGS
TS-0208-9011 GenV ProPort Spring Kit – All
TS-0208-9006 GenV ProPort Spring (4 InHG) Pink
TS-0208-9007 GenV ProPort Spring (7 InHG) Orange
TS-0208-9008 GenV ProPort Spring (9 InHG) Purple
TS-0208-9009 GenV ProPort Spring (15 InHG) Green
TS-0208-9010 GenV ProPort Spring (18 InHG) Blue

ACCESSORIES
TS-0208-9002 GenV ProPort Sensor Cap Upgradfe – Black
TS-0550-3008 1/8NPT to 6mm Hode End Adaptor
TS-0505-2008 1/8NPT to -3AN Male to Male Adaptor
TS-0505-2007 1/8NPT to -4AN Male to Male Adaptor

How much boost can this take?

How much do you have? The technical limit is maintained at over 220psi, but it can even do more than this in short bursts. You’re probably asking when it will leak; the answer is that it won’t. The Turbosmart Boost-Balance System means the more boost you make, the better it will seal. We do this to maximise response and boost holding characteristics as we will always have more force pushing the valve closed than you will have to boost trying to push it open.

So, what is the limit of this valve?

The more boost you have, the better it seals, so what is the limit? The valve can flow air; that limit is around 3500HP worth of air. It will never leak, even with more than that power level, however you may start to experience audible compressor surge when attempting to bypass more than 3500HP. And if that is you, great news – We have the PowerPort for over 3500HP Applications!

What Fittings does it use?

The ProPort is based on the GenV architecture and, as such, features our V-styled cap with 2 x 1/8NPT reference ports. The cap can be rotated and clocked to enable the most suitable routing of reference hoses. We include a hose end barb in the kit, however you’re also welcome to use high quality lines and fittings.

Can I upgrade to a Sensor Cap?

Yes. If you already have a ProPort, an upgraded sensor cap is available as a part number, which comes with a new cap and sensor that can be swapped out and fitted to your existing ProPort later. Note that we only produce the Sensor Caps in black, however!

I have a Supercharger – Is this suitable?

Yes. We have spring options available in the spares and accessories area of the website, which means you can set this up for Supercharger Applications. It was designed to do both!

Important legal notice (US)

WARNING - Proposition 65 Compliance Statement:

It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Important Emissions Note:

This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
