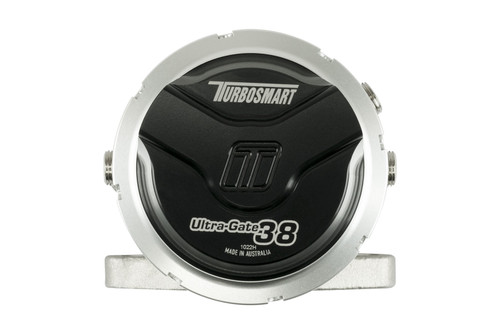

Name: [PN: TS-0551-1012] Turbosmart WG38 GenV Ultra-Gate 38mm wastegate - 14psi Black
SKU: TS-0551-1012
Price: 339.95 USD
Availability: InStock

[PN: TS-0551-1012] Turbosmart WG38 GenV Ultra-Gate 38mm wastegate - 14psi Black

MSRP: $377.72

$339.95

( saved $37.77 )

Write a Review

Product Description

Installation guide

Data sheet

The GenV WG38 UltraGate38 External Wastegate is a Motorsport-proven, cost-effective external wastegate.
The Turbosmart GenV range is the Highest Flowing Wastegate range in the World.

The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management. The GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple and Sleeper Colours
HP High Pressure Version – Black Only

Features
Traditional 3 Bolt Flange & Orientation
Optional Position Sensor Upgrade
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option

SUPPLIED WITH

GenV Wastegate Unit

All Springs Included

(3,5,7,14 (1 Inst. As per Desciption)

GenV SS316 Valve Seat

GenV UltraGate38 SS Gaskets

Hose Tail & Blank Fitting Kit

Turbosmart Decal

DOES NOT INCLUDE WELD FLANGES

SPARES

TS-0550-3004 GenV UltraGate38 Diaphragm Replacement Kit

TS-0550-3009 GenV UltraGate38 Actuator Collar

TS-0550-3013 GenV UltraGate38 Actuator Collar Tool

TS-0550-3012 GenV UltraGate38 Heatshield

TS-0501-3002 GenV UltraGate38 Gasket Set

TS-0551-3001 GenV UltraGate Valve Seat

SPRINGS

TS-0550-3081 GenV UltraGate38 Gate Spring 3psi Inner – Black

TS-0550-3082 GenV UltraGate38 Spring 5psi Inner-Grey

TS-0550-3083 GenV UltraGate38 Spring 7psi Middle – Pink

TS-0550-3084 GenV UltraGate38 Spring 14psi Outer – Red

ACCESSORIES

TS-0550-3022 GenV UltraGate38 Sensor Cap Black

TS-0501-2001 GenV UltraGate38 Weld Flanges – Stainless

TS-0501-2002 GenV UltraGate38 Weld Flanges – Mild Steel

TS-0550-3008 1/8NPT to 6mm Hose End Adaptor

TS-0505-2008 1/8NPT to -3AN Male to Male Adaptor

TS-0505-2007 1/8NPT to -4AN Male to Male Adaptor

TS-0550-3054 1/8NPT 90º Poshloc Fitting – Hi-Temp (1/4″)

TS-0550-3055 1/8NPT T-Piece Pushloc Fitting – Hi-Temp (1/4″)

TS-0550-3053 1/8NPT Straight Pushloc Fitting – Hi-Temp (1/4″)

TS-0550-3056 Hi-Temp Pushloc Tubing 1/4″ Black (3 Metres)

TS-0550-3007 GenV Diaphragm Replacement Tool

TS-0550-3094 GenV Wastegate Press / Spring Change Tool

RELATED VIDEOS

What is the first rule of boost control?

Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket & programmable ECUs. Make sure it is set at a sensible & reasonable limit. Increasing the boost will put more load on your engine, and there is another tune-related factory you must always consider. If in any doubt, speak with a professional tuner/calibrator.

Can I use this on any turbocharged engine?

External Wastegates are used on vehicles fitted with turbochargers that do not have an internal wastegate actuator. External wastegates in most instances are a custom fitted item and require modifications to the factory exhaust manifold, or a custom / specifically manufactured manifold to suit an external wastegate.

What is a GenV Wastegate?

A GenV Wastegate is a 5th Generation External Wastegate from Turbosmart. Turbosmart released the GenV range at the SEMA Show in 2017 and used several features never before seen on a wastegate including rotating actuator housing, ceramic isolators, multi-angle machined valve seats and interchangeable actuator housings.

Do I have to use the liquid cooling ports?

No. The GenV External Wastegate boasts a number of design features which means it can tolerate higher temperatures for longer than it’s peers. The liquid cooling is simply there in case you wish to use it, or are one of the very few who need to.

Why Does the Actuator housing Rotate?

So you can route your reference hoses any way you like. The GenV external wastegate range is designed with an infinitely clock-able actuator housing so that the shortest, most convenient, and most suitable (temperature, etc.) route can be setup for the reference lines.

How do I change the springs?

You will need the locking collar tool supplied in the box and you will also need to apply physical force down on the top cap of the actuator. Applying force counteracts the preload applied with these are assembled in the diaphragm and is a design feature of the product. Attempting to unlock the collar without this force is likely to damage the collar and potentially the actuator.

What size are the reference ports?

1/8NPT. Both the liquid cooling and the boost control reference ports are 1/8NPT. The GenV External Wastegates are delivered with a full hose tail and blanking fitting kit which will get you going, however you’re welcome to use adaptors for AN or push lock fittings for more advanced installs.

This is ‘X’ psi, but I want to run a different amount of boost than that – Which gate should I get?

The pressure rating in the description of a GenV external wastegate is the base mechanical pressure and we including all other springs in the box. You have base mechanical spring options from 3psi up to 26psi. Note however this is just the lowest the gate can be setup for and with manipulation of the reference signal via a boost controller, you can generally achieve 2-3X the base pressure.
