[PN: TS-0553-1012] Turbosmart WG45 GenV Hyper-Gate 45mm wastegate - 14psi Black

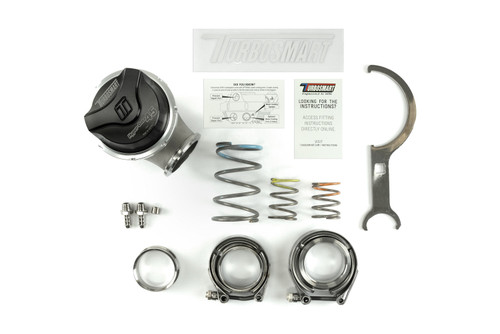

SUPPLIED WITH
GenV Wastegate unit
All Springs Included
3.5.7.14psi (1 Inst. As per Description)
Locking Collar Tool
GenV SS316 Valve seat
Strap Type V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
Turbosmart Decal

SPARES
TS-0550-3005 GenV HyperGate45 Diaphragm Replacement
TS-0550-3010 GenV HyperGate45 Locking Collar
TS-0550-3014 GenV HyperGate45 Locking Collar Tool
TS-0550-3012 GenV HyperGate45 Slave Collar / Heatshield
TS-0553-3001 GenV HyperGate45 Valve Seat

 TS-0553-3002GenV HyperGate45 Valve Guide & Set

TS-0553-3002 GenV HyperGate45 Weld Flange: Inlet
TS-0504-3002 GenV HyperGate45 Weld Flange: Outlet
TS-0553-3003 GenV HyperGate45 V-Band: Inlet
TS-0552-3003 GenV HyperGate45 V-Band: Outlet
TS-0550-3080 GenV HyperGate45 V-Band Nuts

SPRINGS
TS-0550-3085 GenV HyperGate45 Spring 3PSI Inner – Orange
TS-0550-3086 GenV HyperGate45 Spring 5PSI Inner – Yellow
TS-0550-3087 GenV HyperGate45 Spring 7PSI Middle – Green
TS-0550-3088 GenV HyperGate45 Spring 14PSI Outer – Blue

ACCESSORIES
TS-0550-3024 GenV HyperGate45 Sensor Cap Black
TS-0550-3007 GenV Diaphragm Replacement Tool
TS-0504-3007 GenV HyperGate45 Weld Flange: Inlet (Alluminium)
TS-0504-3008 GenV HyperGate45 Weld Flange: Outlet (Alluminium)
TS-0550-3008 1/8NPT to 6mm Hose End Adaptor
TS-0550-3050 1/8NPT to -3AN Male to Male Adaptor
TS-0550-3051 1/8NPT to -4AN Male to Male Adaptor
TS-0550-3054 1/8NPT 90º Poshloc Fitting – Hi-Temp (1/4″)
TS-0550-3055 1/8NPT T-Piece Pushloc Fitting – Hi-Temp (1/4″)
TS-0550-3053 1/8NPT Straight Pushloc Fitting – Hi-Temp (1/4″)
TS-0550-3056 Hi-Temp Pushloc Tubing 1/4″ Black (3 Metres)
TS-0550-3094 GenV Wastegate Press / Spring Change Tool

What is the first rule of boost control?
Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket & programmable ECUs. Make sure it is set at a sensible & reasonable limit. Increasing the boost will put more load on your engine, and there is another tune-related factory you must always consider. If in any doubt, speak with a professional tuner/calibrator.
Can I use this on any turbocharged engine?
External Wastegates are used on vehicles fitted with turbochargers that do not have an internal wastegate actuator. External wastegates in most instances are a custom fitted item and require modifications to the factory exhaust manifold, or a custom / specifically manufactured manifold to suit an external wastegate.
What is a GenV Wastegate?
A GenV Wastegate is a 5th Generation External Wastegate from Turbosmart. Turbosmart released the GenV range at the SEMA Show in 2017 and used several features never before seen on a wastegate including rotating actuator housing, ceramic isolators, multi-angle machined valve seats and interchangeable actuator housings.
Do I have to use the liquid cooling ports?
No. The GenV External Wastegate boasts a number of design features which means it can tolerate higher temperatures for longer than it’s peers. The liquid cooling is simply there in case you wish to use it, or are one of the very few who need to.
Why Does the Actuator housing Rotate?
So you can route your reference hoses any way you like. The GenV external wastegate range is designed with an infinitely clock-able actuator housing so that the shortest, most convenient, and most suitable (temperature, etc.) route can be setup for the reference lines.
How do I change the springs?
You will need the locking collar tool supplied in the box and you will also need to apply physical force down on the top cap of the actuator. Applying force counteracts the preload applied with these are assembled in the diaphragm and is a design feature of the product. Attempting to unlock the collar without this force is likely to damage the collar and potentially the actuator.
What size are the reference ports?
1/8NPT. Both the liquid cooling and the boost control reference ports are 1/8NPT. The GenV External Wastegates are delivered with a full hose tail and blanking fitting kit which will get you going, however you’re welcome to use adaptors for AN or push lock fittings for more advanced installs.
This is ‘X’ psi, but I want to run a different amount of boost than that – Which gate should I get?
The pressure rating in the description of a GenV external wastegate is the base mechanical pressure and we including all other springs in the box. You have base mechanical spring options from 3psi up to 26psi. Note however this is just the lowest the gate can be setup for and with manipulation of the reference signal via a boost controller, you can generally achieve 2-3X the base pressure.
