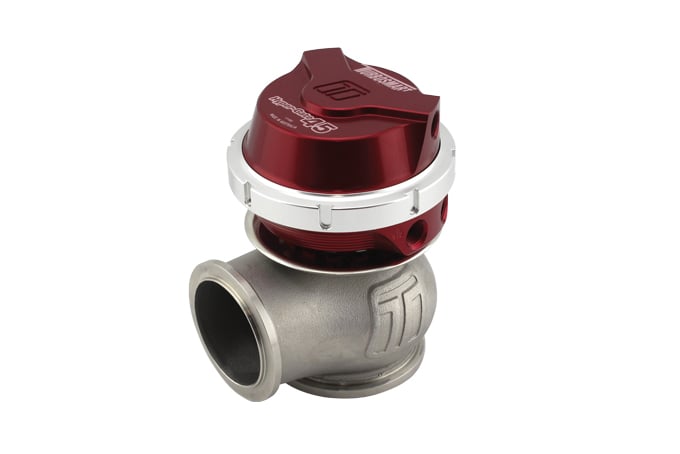

Name: [PN: TS-0553-1014] Turbosmart WG45 GenV Hyper-Gate 45mm wastegate - 14psi Red
SKU: TS-0553-1014
Price: 444.95 USD
Availability: InStock

[PN: TS-0553-1014] Turbosmart WG45 GenV Hyper-Gate 45mm wastegate - 14psi Red

MSRP: $494.39

$444.95

( saved $49.44 )

Write a Review

Product Description

Installation guide

Data sheet

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple and Sleeper colours
Wastegate Position Sensor Optional Upgrade
Compressed Gas / Co2 Version
Motorsport / Extreme Temp Version
Electronically Actuated / eWG Version
High Pressure (Up to 50psi Base) Version

Features
Class Leading Thermal Performance
Class Leading CFD; Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Separately
Rotatable / Clockable Actuator Housing
Nitronic 60 Valve Guide; High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

SUPPLIED WITH
GenV Wastegate unit
All Springs Included
3.5.7.14psi (1 Inst. As per Description)
Locking Collar Tool
GenV SS316 Valve seat
Strap Type V-Bands
Inlet and; Outlet Weld Flanges
Hose Tail and; Blank Fitting Kit
Turbosmart Decal

SPARES
TS-0550-3005 GenV HyperGate45 Diaphragm Replacement
TS-0550-3010 GenV HyperGate45 Locking Collar
TS-0550-3014 GenV HyperGate45 Locking Collar Tool
TS-0550-3012 GenV HyperGate45 Slave Collar / Heatshield
TS-0553-3001 GenV HyperGate45 Valve Seat
TS-0553-3002 GenV HyperGate45 Valve Guide & Set
TS-0504-3001 GenV HyperGate45 Weld Flange: Inlet
TS-0504-3002 GenV HyperGate45 Weld Flange: Outlet
TS-0553-3003 GenV HyperGate45 V-Band: Inlet
TS-0552-3003 GenV HyperGate45 V-Band: Outlet
TS-0550-3080 GenV HyperGate45 V-Band Nuts

SPRINGS
TS-0550-3085 GenV HyperGate45 Spring 3PSI Inner - Orange
TS-0550-3086 GenV HyperGate45 Spring 5PSI Inner - Yellow
TS-0550-3087 GenV HyperGate45 Spring 7PSI Middle - Green
TS-0550-3088 GenV HyperGate45 Spring 14PSI Outer - Blue

ACCESSORIES
TS-0550-3024 GenV HyperGate45 Sensor Cap Black
TS-0550-3007 GenV Diaphragm Replacement Tool
TS-0504-3007 GenV HyperGate45 Weld Flange: Inlet (Alluminium)
TS-0504-3008 GenV HyperGate45 Weld Flange: Outlet (Alluminium)
TS-0550-3008 1/8NPT to 6mm Hose End Adaptor
TS-0550-3050 1/8NPT to -3AN Male to Male Adaptor
TS-0550-3051 1/8NPT to -4AN Male to Male Adaptor
TS-0550-3054 1/8NPT 90º Poshloc Fitting - Hi-Temp (1/4")
TS-0550-3055 1/8NPT T-Piece Pushloc Fitting - Hi-Temp (1/4")
TS-0550-3053 1/8NPT Straight Pushloc Fitting - Hi-Temp (1/4")
TS-0550-3056 Hi-Temp Pushloc Tubing 1/4" Black (3 Metres)
TS-0550-3094 GenV Wastegate Press / Spring Change Tool

Important legal notice (US)

WARNING - Proposition 65 Compliance Statement:

It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Important Emissions Note:

This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
