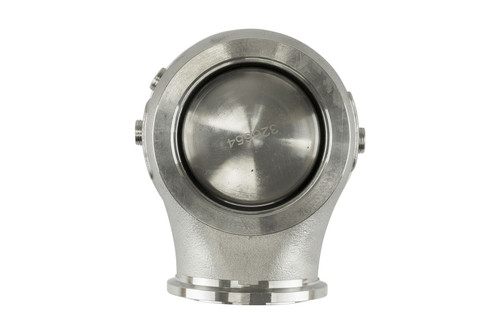

[PN: TS-0554-1013] Turbosmart WG50 GenV Pro-Gate 50mm wastegate - 14psi Purple

Instructions  |   Data Sheet

The GenV WG50 ProGate50 External Wastegate is a Motorsport proven, cost effective external wastegate – The Highest Flowing 50mm External Wastegate in the World.

The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red and Purple
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version

Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
User Adjustable Actuator Position
Modular Design for Actuator Interchangeability

Size 1/8NPT

SUPPLIED WITH
GenV Wastegate unit
All Springs Included in Box
Wastegate Pre-fitted as Per Description
GenV SS316 Valve seat
GenV Inlet & Outlet V-Band Clamps
GenV Inlet & Outlet Flanges
Mounting Bolts and Nuts
Collar tool (master/slave)
4 x 1/8” NPT plugs (1x installed)
2 x 1/8” NPT nipples
Turbosmart Decal

SPARES
TS-0550-3005 GenV ProGate50 Diaphragm Replacement

TS-0550-3014 GenV ProGate50 Locking Collar Tool
TS-0550-3012 GenV ProGate50 Slave Collar / Heatshield

TS-0554-3002 GenV ProGate50 Valve & Guide Set
TS-0502-3001 GenV ProGate50 Weld Flange: Inlet
TS-0502-3002 GenV ProGate50 Weld Flange: Outlet
TS-0554-3003 GenV ProGate50 V-Band: Inlet
TS-0554-3004 GenV ProGate50 V-Band: Outlet
TS-0550-3080 GenV ProGate50 Replacement Nuts
SPRINGS
TS-0550-3085 GenV ProGate50 3PSI Orange Spring - Inner
TS-0550-3086 GenV ProGate50 5PSI Yellow Spring - Inner
TS-0550-3087 GenV ProGate50 7PSI Green Spring - Middle
TS-0550-3088 GenV ProGate50 14PSI Blue Spring - Outer
ACCESSORIES
TS-0550-3024 GenV ProGate50 Sensor Cap Black
TS-0550-3007 GenV ProGate50 Diaphragm Replacement Tool
TS-0502-3007 GenV ProGate50 Weld Flange: Inlet (Alluminium)
TS-0502-3008 GenV ProGate50 Weld Flange: Outlet (Alluminium)

TS-0550-3050 1/8NPT to -3AN Male to Male Adaptor
TS-0550-3051 1/8NPT to -4AN Male to Male Adaptor
TS-0550-3056 Hi-Temp Pushloc Tubing 1/4" Black (3 Metres)
TS-0550-3094 GenV Wastegate Press / Spring Change Tool

What is the first rule of boost control?
Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket & programmable ECUs. Make sure it is set at a sensible & reasonable limit. Increasing the boost will put more load on your engine, and there is another tune-related factory you must always consider. If in any doubt, speak with a professional tuner/calibrator.
Can I use this on any turbocharged engine?
External Wastegates are used on vehicles fitted with turbochargers that do not have an internal wastegate actuator. External wastegates in most instances are a custom fitted item and require modifications to the factory exhaust manifold, or a custom / specifically manufactured manifold to suit an external wastegate.
What is a GenV Wastegate?
A GenV Wastegate is a 5th Generation External Wastegate from Turbosmart. Turbosmart released the GenV range at the SEMA Show in 2017 and used several features never before seen on a wastegate including rotating actuator housing, ceramic isolators, multi-angle machined valve seats and interchangeable actuator housings.
Do I have to use the liquid cooling ports?
No. The GenV External Wastegate boasts a number of design features which means it can tolerate higher temperatures for longer than it’s peers. The liquid cooling is simply there in case you wish to use it, or are one of the very few who need to.
Why Does the Actuator housing Rotate?
So you can route your reference hoses any way you like. The GenV external wastegate range is designed with an infinitely clock-able actuator housing so that the shortest, most convenient, and most suitable (temperature, etc.) route can be setup for the reference lines.
How do I change the springs?
You will need the locking collar tool supplied in the box and you will also need to apply physical force down on the top cap of the actuator. Applying force counteracts the preload applied with these are assembled in the diaphragm and is a design feature of the product. Attempting to unlock the collar without this force is likely to damage the collar and potentially the actuator.
What size are the reference ports?
1/8NPT. Both the liquid cooling and the boost control reference ports are 1/8NPT. The GenV External Wastegates are delivered with a full hose tail and blanking fitting kit which will get you going, however you’re welcome to use adaptors for AN or push lock fittings for more advanced installs.
This is ‘X’ psi, but I want to run a different amount of boost than that – Which gate should I get?
The pressure rating in the description of a GenV external wastegate is the base mechanical pressure and we including all other springs in the box. You have base mechanical spring options from 3psi up to 26psi. Note however this is just the lowest the gate can be setup for and with manipulation of the reference signal via a boost controller, you can generally achieve 2-3X the base pressure.
