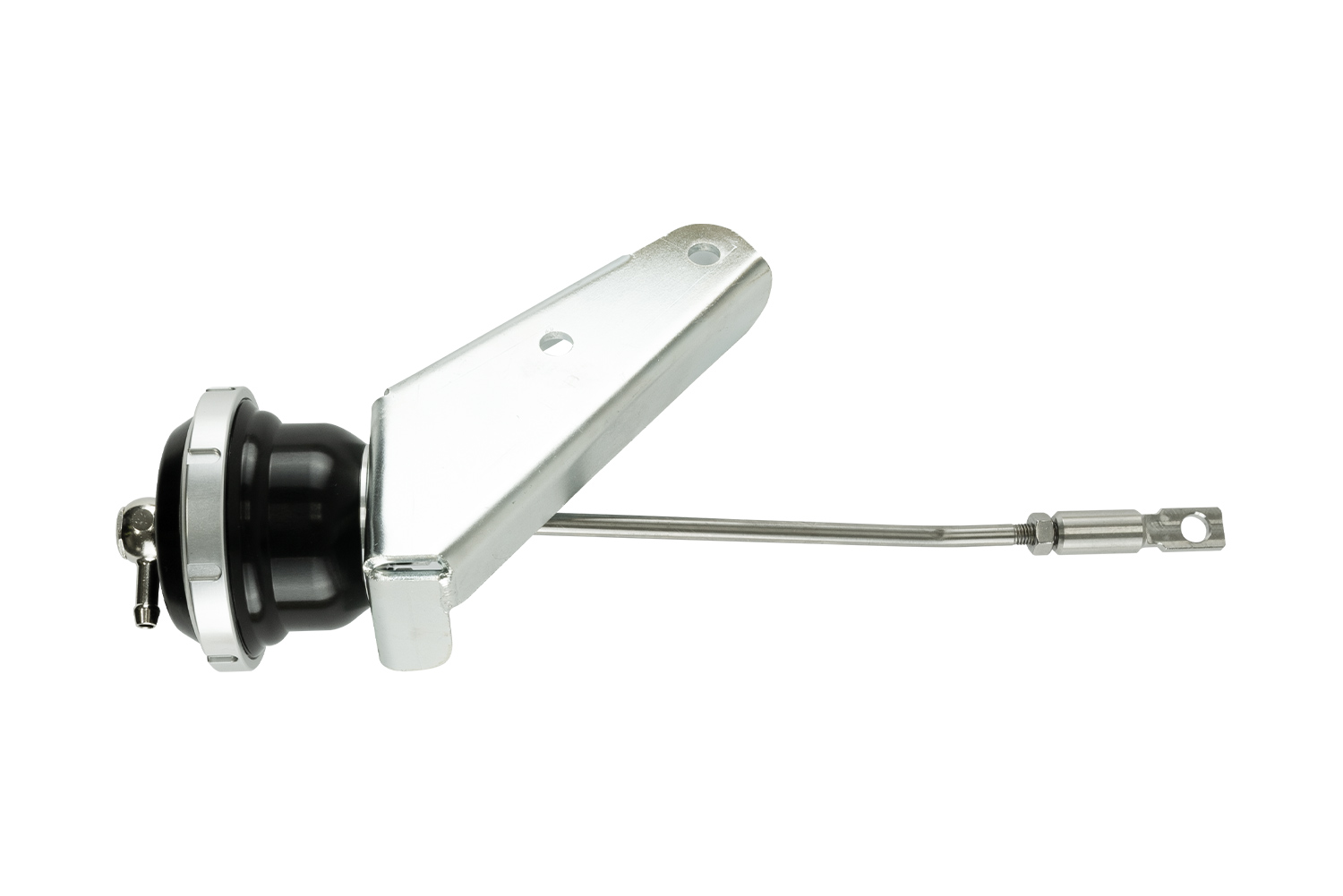

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures, however, tuning & recalibration is likely required.
Available In

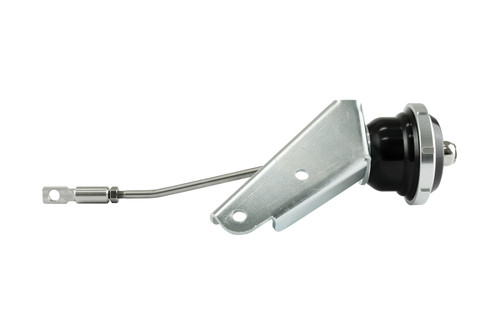

10 PSI / 0.68 BAR: TS-0601-1102
14 PSI / 1.00 BAR: TS-0601-1142
18 PSI / 1.24 BAR: TS-0601-1182
22 PSI / 1.51 BAR: TS-0601-1222
24 PSI / 1.65 BAR: TS-0601-1242
26 PSI / 1.79 BAR: TS-0601-1262
Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
Notes
14 psi Version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine’s ECU.
This is a bolt-on fitment for the TD05H turbocharger as a fitted factory to the 46G3 Powered Mitsubishi Evolution 4-8.
SUPPLIED WITH
IWG75 Wastegate Actuator
Vehicle Specific Mounting Bracket
Springs Pre-Fitted as per Description
Required Fasteners & Swivel Hose Barb
Water Ingress Protective Hood
SPARES
TS-0505-3007 IWG75 Locking Collar
SPRINGS
TS-0505-2001 Gen4 IWG75 Spring 3psi Inner – Brown / Black
TS-0505-2002 Gen4 IWG75 Spring 5psi Inner – Brown/ Grey
TS-0505-2003 Gen4 IWG74 Spring 7psi Middle – Brown / Purple
TS-0505-2004 Gen4 IWG75 Spring 11psi Middle – Brown / Red
TS-0505-2005 Gen4 IWG75 Spring 10psi Outer – Brown / Blue
TS-0505-2006 Gen4 IWG75 Spring 7psi Outer – Brown/ Pink
ACCESSORIES
TS-0505-2008 1/16” NPT to -3AN Male to Male Adaptor
TS-0505-2009 1/16” NPT to -4AN Male to Male Adaptor
TS-0505-2007 1/16” NPT to 1/8” NPT Male to Female Adaptor
TOOLS
TS-0505-3008 Gen4 IWG75 Locking Collar Tool
