Name: [PN: TS-0622-2072] Turbosmart IWG75 Ford Focus ST / XR5 2.5L Turbo 7 PSI
SKU: TS-0622-2072
Price: 189.95 USD
Availability: InStock

[PN: TS-0622-2072] Turbosmart IWG75 Ford Focus ST / XR5 2.5L Turbo 7 PSI

MSRP: $211.06

$189.95

( saved $21.11 )

Write a Review

Product Description

Installation guide

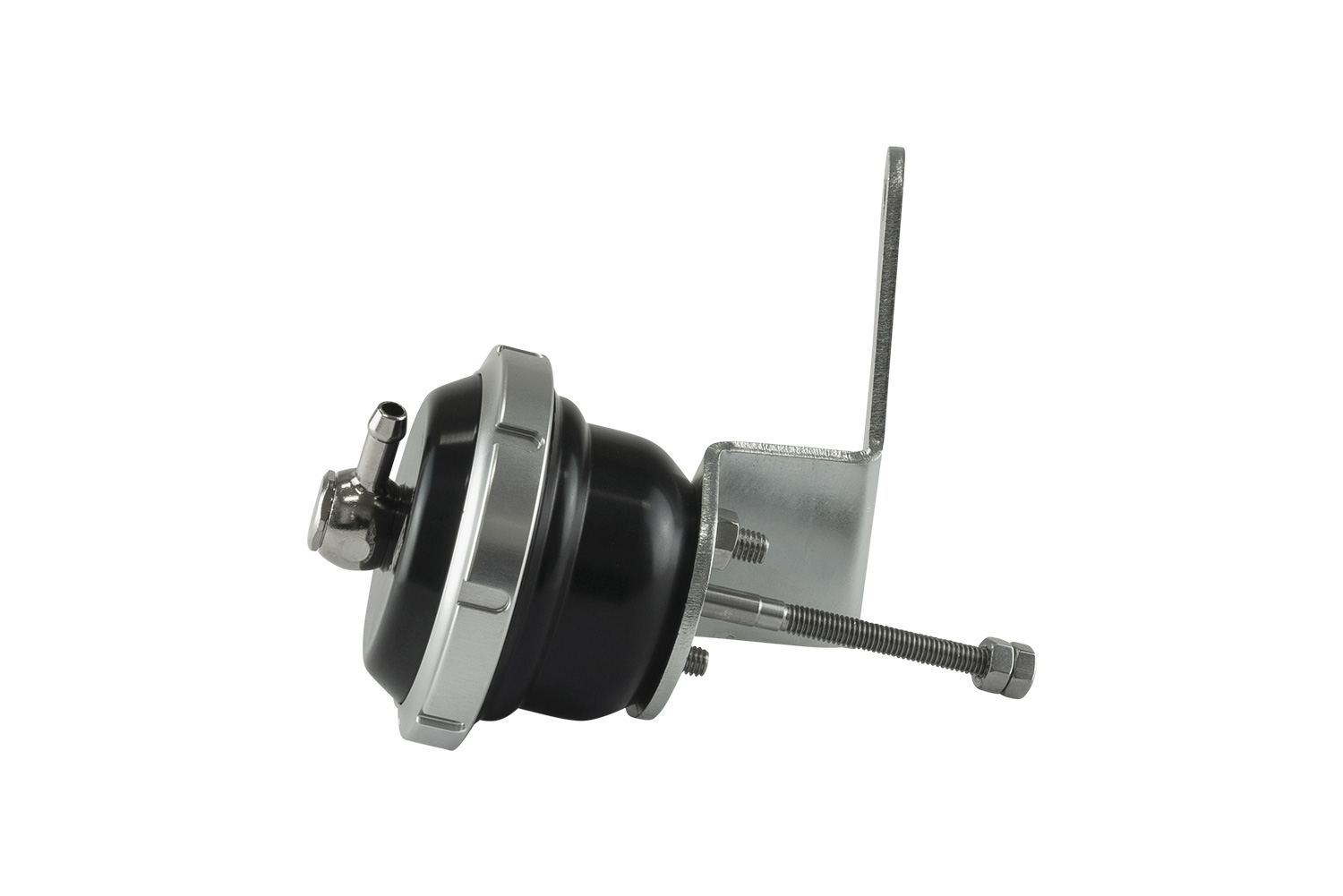

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost and torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning and recalibration are likely required.

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

SUPPLIED WITH

IWG75 Wastegate Actuator

Springs Pre-Fitted as per Description

Required Fasteners & Swivel Hose Barb

SPARES

TS-0600-2001 IWG75 Diaphragm Replacement

TS-0505-3007 IWG75 Locking Collar

SPRINGS

TS-0505-2001 Gen4 IWG75 Spring 3psi Inner – Brown / Black

TS-0505-2002 Gen4 IWG75 Spring 5psi Inner – Brown/ Grey

TS-0505-2003 Gen4 IWG75 Spring 7psi Middle – Brown / Purple

TS-0505-2004 Gen4 IWG75 Spring 11psi Middle – Brown / Red

TS-0505-2005 Gen4 IWG75 Spring 10psi Outer – Brown / Blue

TS-0505-2006 Gen4 IWG75 Spring 7psi Outer – Brown/ Pink

ACCESSORIES

TS-0505-2008 1/16” NPT to -3AN Male to Male Adaptor

TS-0505-2009 1/16” NPT to -4AN Male to Male Adaptor

TS-0505-2007 1/16” NPT to 1/8” NPT Male to Female Adaptor

TOOLS

TS-0505-3008 Gen4 IWG75 Locking Collar Tool

SUITABLE FOR
This is a bolt-on fitment for the Borg Warner K04 turbocharger as fitted to the 2.5L DOHC Turbo 5 Cylinder motor in Ford Focus, Mondeo and Kuga (Excludes Focus RS Turbo, instead refer: TS-0622-3072)

Important legal notice (US)

WARNING - Proposition 65 Compliance Statement:

It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Important Emissions Note:

This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
