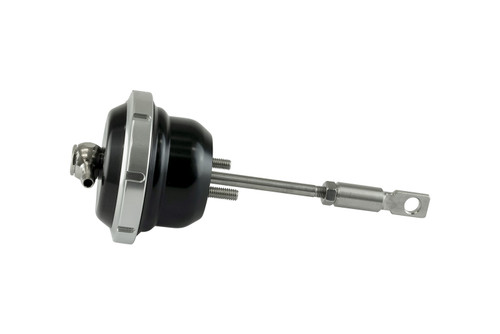

[PN: TS-0625-1052] Turbosmart IWG75 Garret GT2860RS (Disco Potato) 5 PSI Black

Installation guide

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment, resulting in improved boost response throughout the RPM range.

This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost and torque curve through peak boost achieved earlier in the RPM and hold longer into higher RPM. These improvements can be amplified with higher base pressures, however tuning and recalibration is likely required.

Available In
3psi / 0.2 BAR: TS-0625-1032
5psi / 0.3 BAR: TS-0625-1052
7psi / 0.5 BAR: TS-0625-1072

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

This is a bolt on fitment for the Garrett GT2860RS ‘Disco Potato’ Turbocharger
