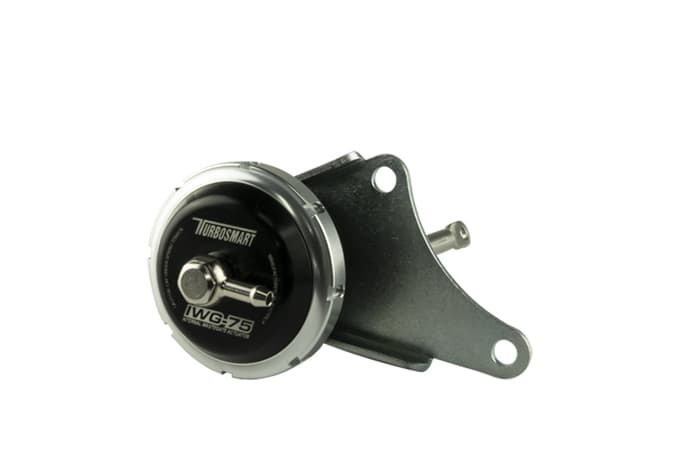

Name: [PN: TS-0625-4072] Turbosmart IWG75 Garrett GTX28R SR20 7 PSI Black
SKU: TS-0625-4072
Price: 198.95 USD
Availability: InStock

[PN: TS-0625-4072] Turbosmart IWG75 Garrett GTX28R SR20 7 PSI Black

MSRP: $221.06

$198.95

( saved $22.11 )

Write a Review

Product Description

Installation guide

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning & recalibration is likely required.

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

SUPPLIED WITH
IWG75 Wastegate Actuator
Springs Pre-Fitted as per Description
(Outer 7psi (Pink) Spring)
Required Fasteners and Swivel Hose Barb

SPARES

TS-0600-2001 IWG75 Diaphragm Replacement

TS-0505-3007 IWG75 Locking Collar

SPRINGS

TS-0505-2001 Gen4 IWG75 Spring 3psi Inner – Brown / Black

TS-0505-2002 Gen4 IWG75 Spring 5psi Inner – Brown/ Grey

TS-0505-2003 Gen4 IWG75 Spring 7psi Middle – Brown / Purple

TS-0505-2004 Gen4 IWG75 Spring 11psi Middle – Brown / Red

TS-0505-2005 Gen4 IWG75 Spring 10psi Outer – Brown / Blue

TS-0505-2006 Gen4 IWG75 Spring 7psi Outer – Brown/ Pink

ACCESSORIES

TS-0505-2008 1/16” NPT to -3AN Male to Male Adaptor

TS-0505-2009 1/16” NPT to -4AN Male to Male Adaptor

TS-0505-2007 1/16” NPT to 1/8” NPT Male to Female Adaptor

TOOLS

TS-0505-3008 Gen4 IWG75 Locking Collar Tool

SUITABLE FOR
This is a bolt-on fitment for the Garrett GTX28R as fitted to the Nissan SR20DET series of engines.
