Name: Radium Direct Mount Fuel Cell Fillers
SKU: DMF
Availability: InStock

Radium Direct Mount Fuel Cell Fillers

$0.00

Write a Review

Product Description

Installation Instructions

OVERVIEW

These fuel fillers are designed to mount directly to Radium Engineering fuel cell surge tanks. There are fuel fillers on this page specific to both the FCST (while supplies last) and the FCST-X.

	20-1197-V FCST-X 3-Bolt Direct Mount Fill Neck and Cap Vented This direct mounted fill neck and cap is perfect for filling directly into the fuel cell. Fits FCST-X only. Does NOT fit FCST.
	20-1060 FCST-X Fill Neck Block-Off Kit This blocks-off the filler hole on the Radium FCST-X (ONLY). INCLUDES Anodized 1/8' (3mm) Aluminum Plate FKM O-ring Gasket Seal Stainless Steel Hardware Fits FCST-X only. Does NOT fit FCST.

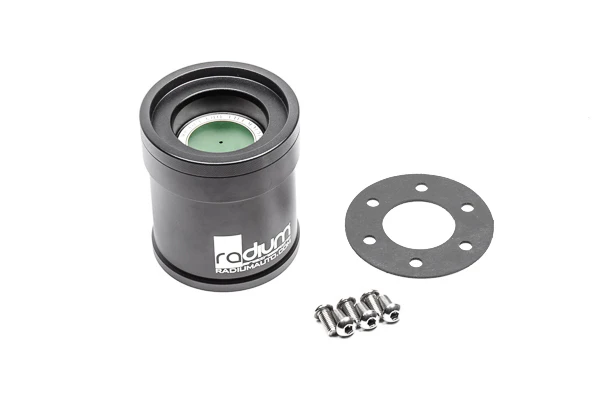

	20-0495-V FCST 6-Bolt Dry Break 1.5in Female Direct Mount Vented Designed for direct mounting onto a fuel cell. For mating, a 6-bolt flange with a 2.18' PCD bolt circle (as found on the older FCST) is required. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as an aluminum housing, stainless steel hardware, and a gasket. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). SPECIFICATIONS Height: 3.43' (Dry Break to Gasket) Mate: 20-0496 Dry Break, 1.5in, Male This product does not fit the FCST-X.
	20-0360 FCST 6-Bolt Fill Neck Block-Off Kit This blocks-off the filler hole on the Radium FCST. INCLUDES Anodized 1/8' (3mm) Aluminum Plate FKM Gasket Flange Seal Stainless Steel Hardware This product does not fit the FCST-X.
