Radium Fuel Pressure Test and Relief Kits

20-0392 Fuel Pressure Test Kit

In some cases, mounting a fuel pressure gauge or pressure transducer directly to the fuel rail is not possible due to confined space around the fuel rail, or the fuel gauge would not be easily visible. In these cases it is ideal to remote mount the pressure gauge or transducer.

This kit contains all the necessary parts to remote mount a gauge or transducer for testing fuel pressure. The kit works with any fuel rail or pressure regulator that has a 1/8" NPT female port.

The kit also contains a Schrader valve that can be used for pressure testing, bleeding air out of the line, fuel sampling, or relieving fuel pressure before service. This kit can be used as single-use tool, or it can be left on the vehicle as a permanent component.

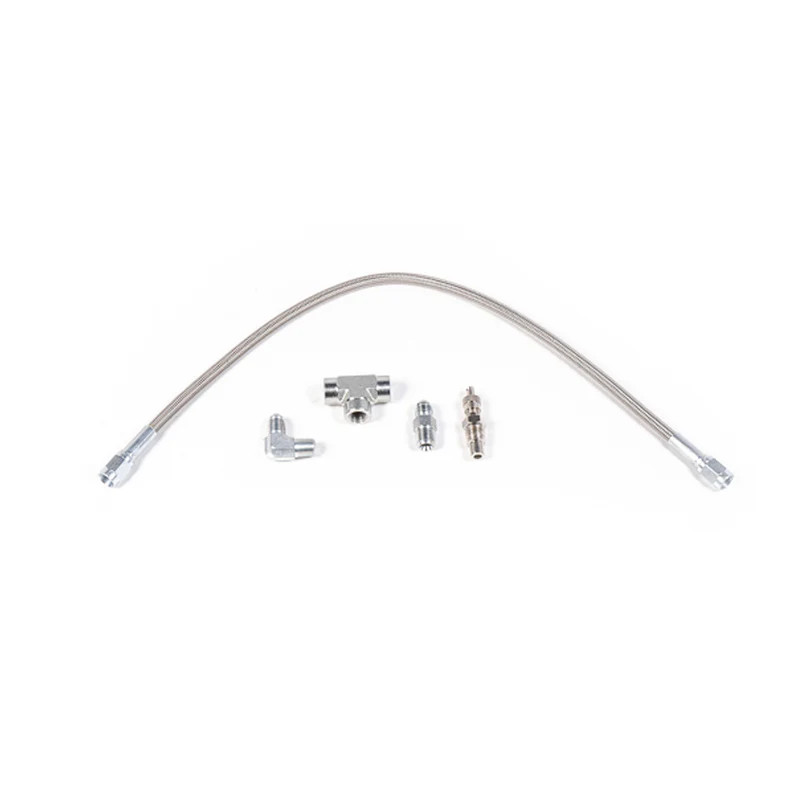

INCLUDES

• 16" high pressure PTFE 3AN hose
• 1/8" NPT to 3AN male adapter, 90 degree
• 1/8" NPT to 3AN male adapter, straight
• 1/8" NPT 3-way tee fitting, female
• 1/8" NPT Schrader valve with cap

NOTE

Pressure gauge is not included, order it separately from the check boxes on the right.

20-0440 8AN ORB to Schrader Valve

The Schrader valve kit can be used for pressure testing, bleeding air out of the line, fuel sampling, or relieving fuel pressure before service. This kit can be used as single-use tool, or it can be left on the vehicle as a permanent component.
