Radium Fuel Pump Connector Harnesses

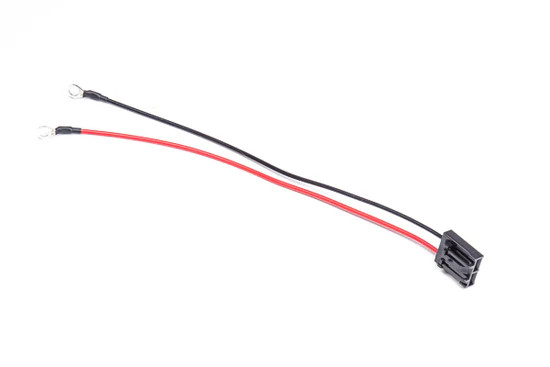

17-0051-00
This fuel pump harness is a replacement or add-on for many Radium Engineering components.

Specifications:
Length: 10" (end to end)
Ring Terminals: #10 Screw
ETFE Wires: 14 AWG

Compatible with the following fuel pumps:
-Walbro GSS341 255LPH
-Walbro GSS342 255LPH
-AEM 50-1000 Gas
-AEM 50-1200 E85
-AEM 50-1220 E85
-Aeromotive 340R 11141
-Aeromotive 340R 11142
-Deatschwerks 9-301-1000

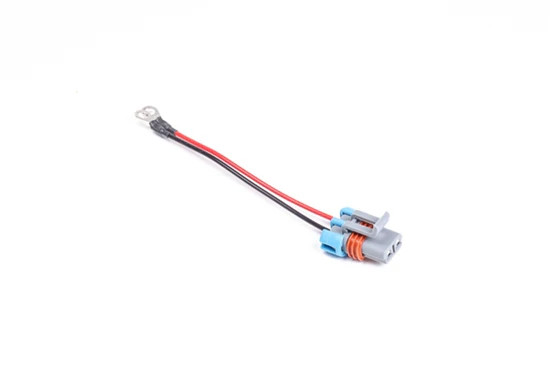

17-0049-00
This fuel pump harness is a replacement or add-on for many Radium Engineering components.

Specifications:
Length: 6.2" (end to end)
Ring Terminals: #10 Screw
ETFE Wires: 14 AWG

Compatible with the following Walbro (Ti Automotive) E85 fuel pumps:
P/N: F90000267
P/N: F90000274
P/N: F90000285
P/N: F90000295

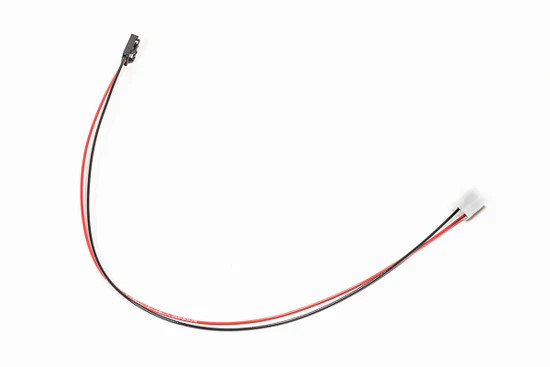

17-0053
This fuel pump harness is a replacement or add-on for many Radium Engineering components. The white connector also plugs directly into the underside of many OEM fuel pump hangers including the Porsche 996.

Specifications:
Length: 23" (end to end)
ETFE Wires: 14 AWG

Compatible with the following fuel pumps:
-Walbro GSS341 255LPH
-Walbro GSS342 255LPH
-AEM 50-1000 Gas
-AEM 50-1200 E85
-AEM 50-1220 E85
-Aeromotive 340R 11141
-Aeromotive 340R 11142
-Deatschwerks 9-301-1000

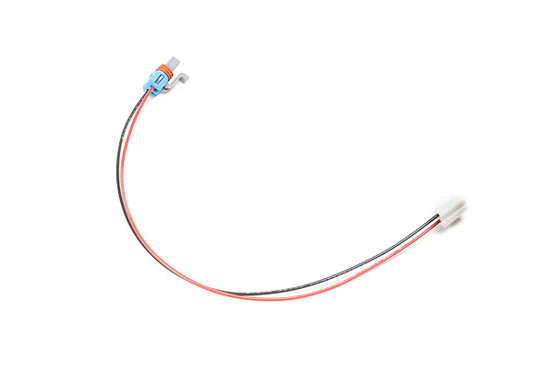

17-0054
This fuel pump harness is a replacement or add-on for many Radium Engineering components. The white connector also plugs directly into the underside of many OEM fuel pump hangers including the Porsche 996.

Specifications:
Length: 17" (end to end)
ETFE Wires: 14 AWG

Compatible with the following Walbro (Ti Automotive) E85 fuel pumps:
P/N: F90000267
P/N: F90000274
P/N: F90000285
P/N: F90000295
