[PN: 20-0] Radium Injector Seats for Toyota Top Feed Fuel Rails

MSRP: $74.95 - $84.95
$71.20 - $80.70
SKU:
20-0
Shipping:
Calculated at Checkout

Click here to download installation instructions (PDF)

These are the same machined aluminum injector seats used in many Radium Engineering fuel rails. They are required when converting the OEM fuel injector to aftermarket fuel injectors. They simply press-fit into the intake manifold injector ports with no modifications required. Using the included FKM O-ring, they seal into the machined injector counterbore preventing vacuum (or boost) leaks. The injector seat bores are designed to be used with a common 14mm lower injector O-ring.

Features
-CNC machined 6061 aluminum
-Laser etched logo
-FKM O-rings

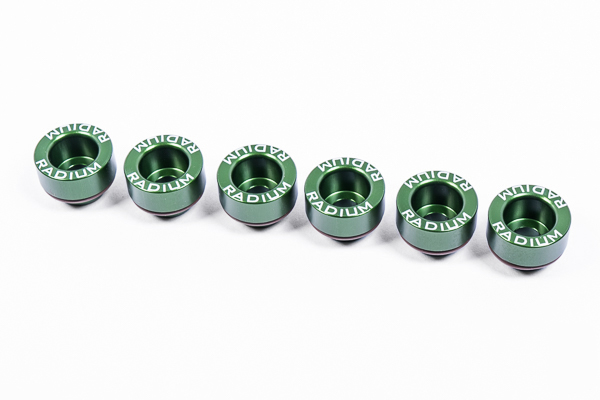

20-0216-06 TOYOTA INJECTOR SEAT KIT, 6 CYLINDER
20-0216-06 is used to convert side feed injectors to top feed injectors.

COMPATIBILITY
2JZ-GTE
2JZ-GTE VVT-i
1JZ-GTE (Non VVT-i)
NOTE: There are other engines that are compatible but have never been verified.


20-0516-06 TOYOTA AIR ASSIST INJECTOR SEAT KIT, 6 CYLINDER
20-0516-06 is used to convert Toyota air-assist injectors to standard top feed injectors.

COMPATIBILITY
2JZ-GE VVT-i
1UZ-FE VVT-i
3UZ-FE

NOTE: There are other engines that are compatible but have never been verified.
