[PN: 20-12] Radium DIY PTFE Hose Kits

COMPATABILITY

PTFE hose is compatible with the following fluids and more

• Fuel
• Oil
• Transmission Fluid
• Power Steering Fluid
• Coolant

OVERVIEW

PTFE is the gold standard for chemically inert hose material, offering exceptional resistance to the harsh fluids commonly found in modern performance vehicles.

Radium Engineering’s PTFE hoses are now carbon-lined to help dissipate static charge buildup—an important feature in high-flow fueling systems.

With virtually zero permeation, they won’t emit vapors like traditional rubber hoses, making them a cleaner, safer choice.

It is strongly recommended that assembly of this hose be performed by experienced installers and pressure testing of each assembly is performed before the hose is used.

Additional PTFE Hose Ends

PTFE hose ends are specific to PTFE hose and cannot be used with rubber hose. Each fitting is machined from aluminum and anodized black. All hose ends are swiveling type.

Radium does not offer any other PTFE hose end sizes or angles other than what is listed on this page. If another size or angle is needed, you can use any PTFE specific hose ends from any other supplier.

SPECS & FEATURES

• Pressure tested to 1200psi in-house
• Generally rated to over 2500psi
• Temperature rating from -94°F to 480°F

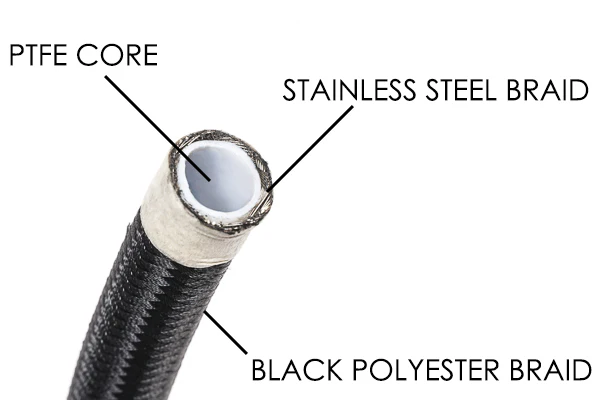

• Seamless extruded PTFE core
• Stainless steel wire braid wrapped
• PET braided jacket outer finish
• Type-II black anodized aluminum hose ends
• Carbon lined core to dissipate static charge

20-1206 6AN UNIVERSAL PTFE HOSE KIT, BLACK, CARBON

DIMENSIONS

• 0.33" Inner Diameter
• 0.50" Outer Diameter

20-1208 8AN UNIVERSAL PTFE HOSE KIT, BLACK, CARBON

DIMENSIONS

• 0.42" Inner Diameter
• 0.60" Outer Diameter

20-1210 10AN UNIVERSAL PTFE HOSE KIT, BLACK, CARBON

DIMENSIONS

• 0.51" Inner Diameter
• 0.70" Outer Diameter



INCLUDED

• Black braided PTFE hose, 14.75ft (4.5m)
• Black PTFE hose end, straight (x2)
• Black PTFE hose end, 45 degree (x2)
• Black PTFE hose end, 90 degree (x2)
