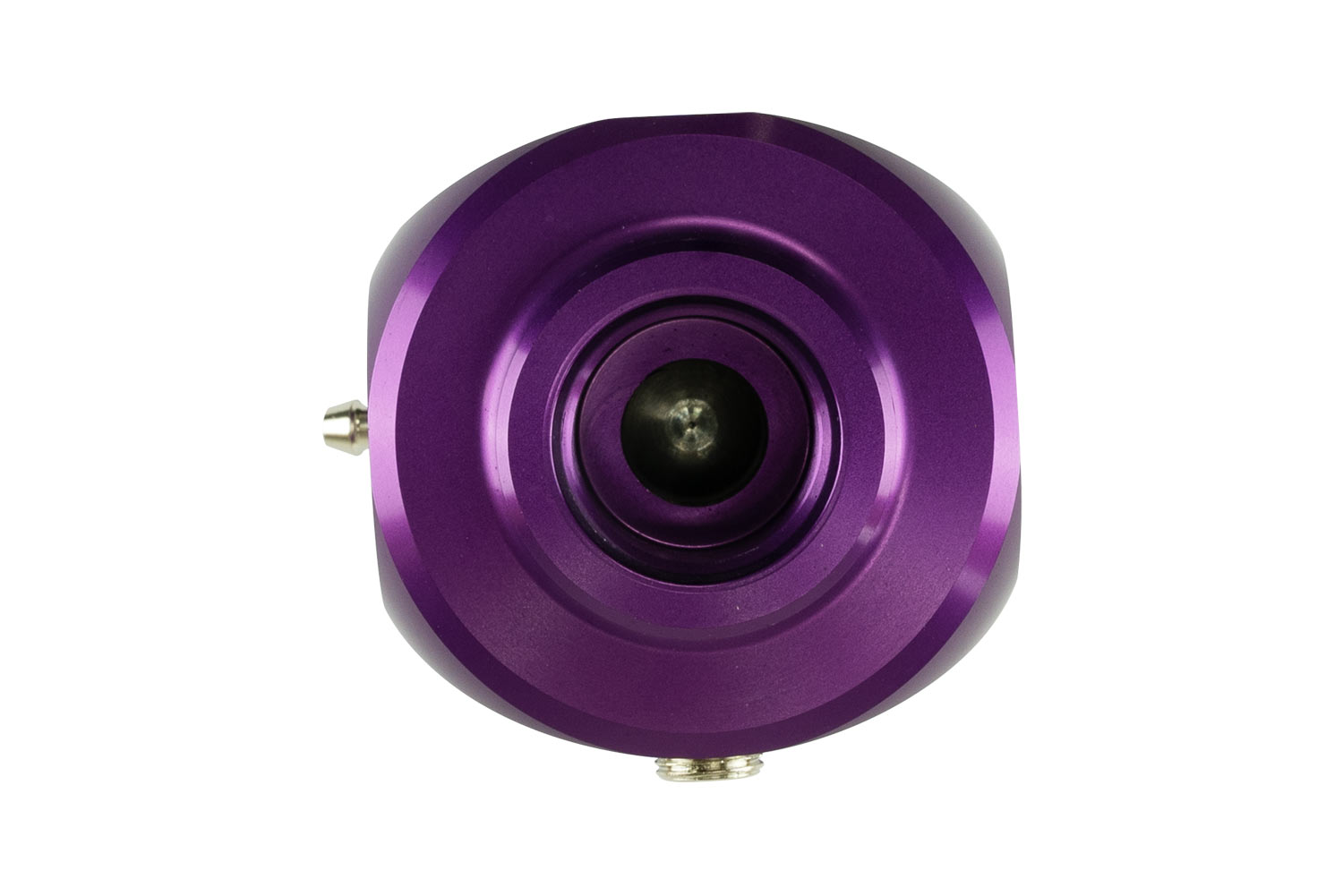

Name: [PN: TS-0404-1043] Turbosmart FPR10 Purple
SKU: TS-0404-1043
Price: 267.29 USD
Availability: InStock

[PN: TS-0404-1043] Turbosmart FPR10 Purple

MSRP: $296.99

$267.29

( saved $29.70 )

Write a Review

Product Description

Installation guide

Data sheet

The Turbosmart FPR10 Series provides market-leading fuel control and response via a true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR10 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR10 Range includes a 10AN inlet, outlet and returns port and is available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 3000HP systems.

Features
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio and Response
Adjustable Pressure
1/8 NPT Gauge / Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data and Spec

Available in:
FPR10 (Blue) TS-0404-1041
FPR10 (Black) TS-0404-1042
FPR10 (Purple) TS-0404-1043
FPR10 (Red) TS-0404-1044
FPR10 (LP) TS-0404-1142

SUPPLIED WITH

Fuel Pressure Regulator
Mounting bracket
2 x M5 Mounting Screws
Turbosmart Decal

ACCESSORIES
TS-0402-1141 Fuel Pressure Regulator Billet Mounting Bracket (Black)
TS-0402-2023 Fuel Pressure Gauge – 1/8NPT 0-100psi
TS-0402-1013 Fuel Rail Adaptor: Subaru (STI)
TS-0402-1001 Fuel Rail Adapter: Subaru/Nissan/Mazda
TS-0402-1005 Fuel Rail Adapter: Mitsubishi
TS-0402-1014 Fuel Rail Adapter: Mitsubishi (EVO)
TS-0402-1004 Fuel Rail Adapter: Honda
TS-0402-1003 Fuel Rail Adapter: Toyota/Mazda
TS-0402-1002 Fuel Rail Adapter: Toyota/Subaru
TS-0402-1006 Fuel Rail Adapter: Audi/VW/Ford

FUEL FILTERS
TS-0402-1130 Billet 10um Fuel Filter: -6AN
TS-0402-1131 Billet 10um Fuel Filter: -8AN
TS-0402-1132 Billet 10um Fuel Filter: -10AN
TS-0402-1140 Billet Fuel Filter Bracket

FITTINGS
TS-0402-1123 1/8NPT Male to 1/8 NPT Female 90 degree Fitting

Why buy a Turbosmart Fuel Pressure Regulator?

All Turbosmart FPRs are CNC machined in-house from billet aluminium + stainless steel and hand-assembled and tested to ensure maximum precision. Turbosmart FPRs have been designed to provide smooth and stable fuel pressure delivery under all conditions, from idle to full throttle. They are suitable for use with both electric and mechanical fuel pumps. The FPR range features an easy screw and lock adjustment and provides a stable 1:1 ratio between fuel and manifold pressure. Each FPR is backed by various accessories, such as fuel rail adapters, gauges and fittings to suit the most popular makes and models.

What is a Fuel Pressure Regulator?

A fuel pressure regulator must maintain constant fuel pressure above the intake manifold pressure. Most commonly fitted to the Fuel rail as injectors require a greater feed pressure than inlet manifold pressure to provide adequate fuel spray for fuel-injected vehicles.

When do I need to Install one? Or upgrade my factory one?

Installing performance fuel injectors or high-flow fuel pumps requires an aftermarket fuel pressure regulator to allow pressure adjustments while maintaining a stable base pressure. They can also maximise a standard fuel system’s ability to cope with minor power modifications.

Will Turbosmart FPR work on a Semi Dead-Head System?

Yes. The Turbosmart FPR range is a regulator, and it doesn’t matter where you fit it. It will accurately regulate the pressure of the fuel circuit, no matter where on the car you have installed it.

Can These handle Race Fuel?

Yes. With Turbosmart’s Unique Diaphragm, stainless salve and seat, we’ve designed, proven and validated these regulators with the harshest types of fuels around, including Methanol, Lead Race Fuel and E85.
